Cat6 vs Cat6a: Which One Your 10GbE Runs Actually Need

On paper, Cat6 and Cat6a both carry 10 Gigabit Ethernet, so the safe-looking move is to spec whichever the budget allows and move on. That is where it bites. Cat6 quietly gives up 10GbE somewhere past about 55 meters — sooner in a packed cable tray — so a backbone that certified fine on the bench can fail in the riser. Go the other way and over-spec Cat6a everywhere, and you find it is noticeably fatter and stiffer: it fills conduit faster, needs a larger bend radius, costs more per foot, and will not seat in Cat6-rated keystones. Either mistake tends to surface at the worst time — during certification, or after the cable is already in the wall.

This guide compares Cat6 vs Cat6a the way someone speccing a real install has to: how far each carries 10GbE, what alien crosstalk and shielding actually change, the physical and labor cost of Cat6a, and which one a given run needs.

Quick Answer: Cat6 vs Cat6a

Cat6 supports 10GbE only over shorter runs — commonly up to about 55 meters on compliant channels — while Cat6a is built to carry 10GbE to the full 100 meters and to resist alien crosstalk in dense bundles. Choose Cat6 for short 10GbE links, general PoE, and cost-sensitive runs; choose Cat6a for long 10GbE horizontal runs, high-density cabling, and demanding PoE++ deployments. Both share the RJ45 interface and are backward compatible with slower gear, so any link runs at the speed of its weakest component.

What Cat6 and Cat6a Actually Are

Both are categories of balanced twisted-pair copper defined by ANSI/TIA-568.2-D, both use four twisted pairs and the same 8-position RJ45 interface, and both are rated for 10GBASE-T. The difference is how far that 10GbE survives in the real world.

A Cat6 cable is rated to 250 MHz and supports 10GbE over limited distances. A Cat6a ethernet cable (“a” for augmented) is rated to 500 MHz and is specified to carry 10GbE the full 100 meters, because it is engineered and tested against alien crosstalk — the noise that neighboring cables in a bundle couple into each other. That single design goal drives almost every physical difference between the two.

Cat6 vs Cat6a: The Specs That Decide It

Headline 10GbE support looks identical until you add distance and density. The rows that actually drive the decision are 10GbE reach, alien-crosstalk handling, and the physical size that follows from it.

Distances per IEEE 802.3 / ANSI/TIA-568.2-D for compliant, fully-terminated channels. Cat6 10GBASE-T reach depends on alien crosstalk and installation conditions (TIA TSB-155-A); Cat6a is the category specified for guaranteed 10GbE to 100 m. Diameters and conductor gauge are typical, not mandated.

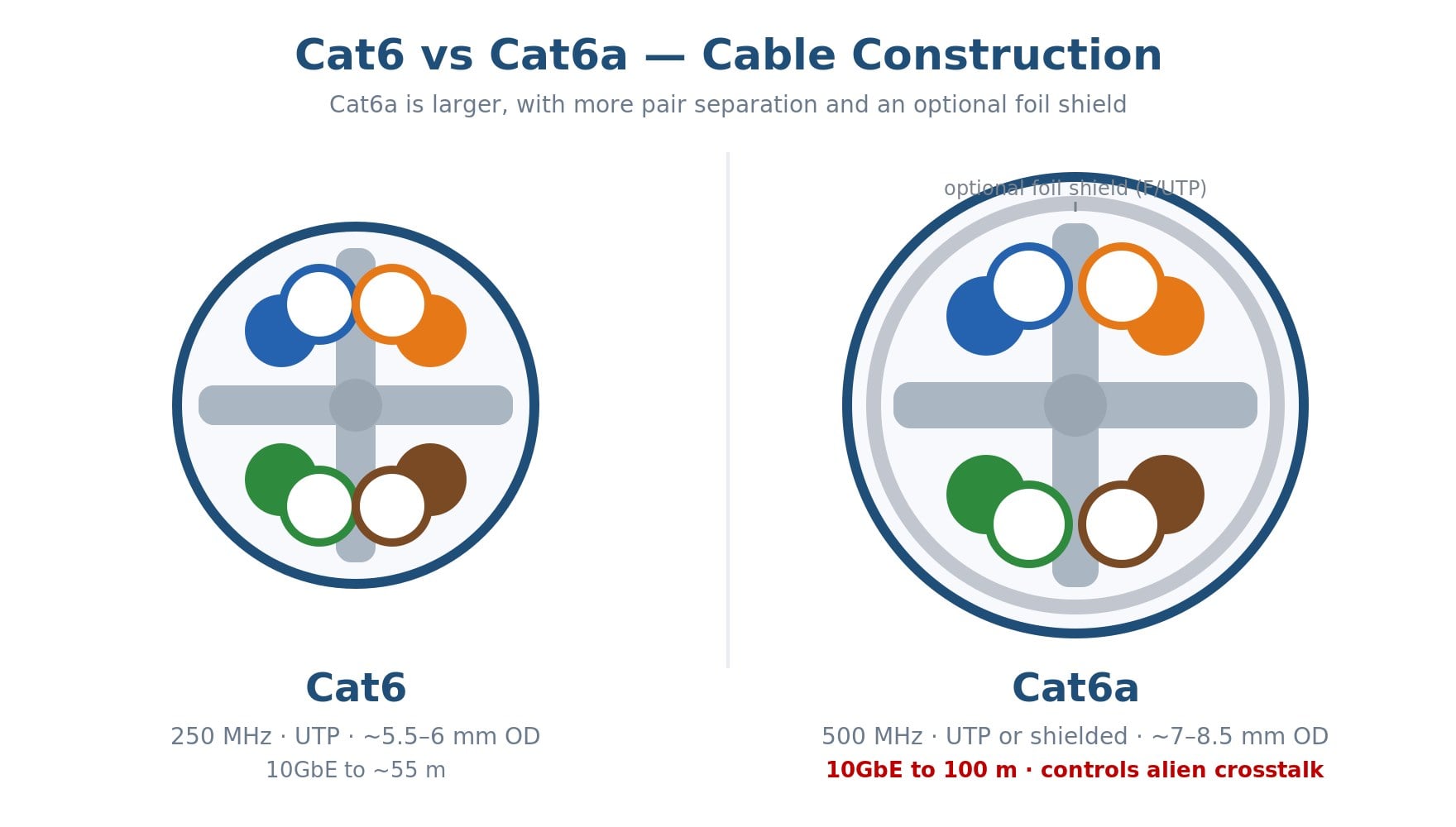

Why Cat6a Reaches Farther — Alien Crosstalk & Shielding

The thing that limits 10GBASE-T over Cat6 at distance is not bandwidth on a single cable — it is alien crosstalk (ANEXT): noise coupling between adjacent cables bundled together. The more cables share a tray and the longer the run, the more this noise accumulates, which is why Cat6 holds 10GbE comfortably on a short isolated link but loses margin in a packed 100-meter run.

Cat6a attacks that problem physically, and each measure has a consequence:

• More separation between pairs and a larger overall geometry push neighboring cables apart, reducing pair-to-pair coupling between cables — which is also why Cat6a is fatter.
• Tighter, longer-scheme twists and 500 MHz-rated construction preserve signal margin across the wider band 10GBASE-T uses.
• An optional overall foil shield (F/UTP) can further suppress alien crosstalk and external EMI. The caveat: a shield only helps when it is properly bonded and grounded end-to-end; a floating or poorly terminated shield can perform no better — or worse — than good UTP, and it adds termination complexity.

For PoE, Cat6a's larger conductors tend to carry high-wattage power with less temperature rise in dense bundles, which can help PoE++ (Type 4) runs stay within thermal limits — though the actual margin depends on bundle size, ambient temperature, and how the cable is installed.

The Hidden Cost of Cat6a: Size, Bend Radius & Termination

Cat6a is not automatically the better cable — it is the right cable for specific jobs, and the wrong one for others. Its larger outer diameter means roughly half again the cross-sectional area of Cat6, so it fills conduit and J-hooks faster, needs a larger minimum bend radius (kinking it degrades performance), and is heavier on pathway supports. It is also harder to terminate and requires Cat6a-rated jacks, keystones, and patch panels — terminating Cat6a on Cat6 hardware does not give you a Cat6a channel. Add higher cost per foot and per termination, and “Cat6a everywhere” can quietly blow both the cable budget and the pathway plan. On short runs or sub-10G networks, that overhead buys nothing.

Which Should You Run?

Choose Cat6a for 10GbE horizontal runs that need the full 100 meters, for data-center and campus backbones you want to last, for high-density bundles where alien crosstalk accumulates, and for PoE++ deployed at scale over long runs. This is where Cat6a patch cables and bulk Cat6a earn their cost.

Choose Cat6 when 10GbE only needs to travel short distances (a switch to a nearby server under ~55 m), when the network is primarily 1G/2.5G/5G, when pathways are tight and the fatter Cat6a will not fit, or when cost matters and the run does not need Cat6a's reach. For those jobs, Cat6 patch cables are lighter, cheaper, and easier to terminate.

Bottom line: unless a run needs guaranteed 10GbE beyond ~55 meters or sits in a dense, noisy bundle, Cat6 usually does the job for less money and less hassle — reserve Cat6a for the runs that genuinely need its reach and crosstalk margin.

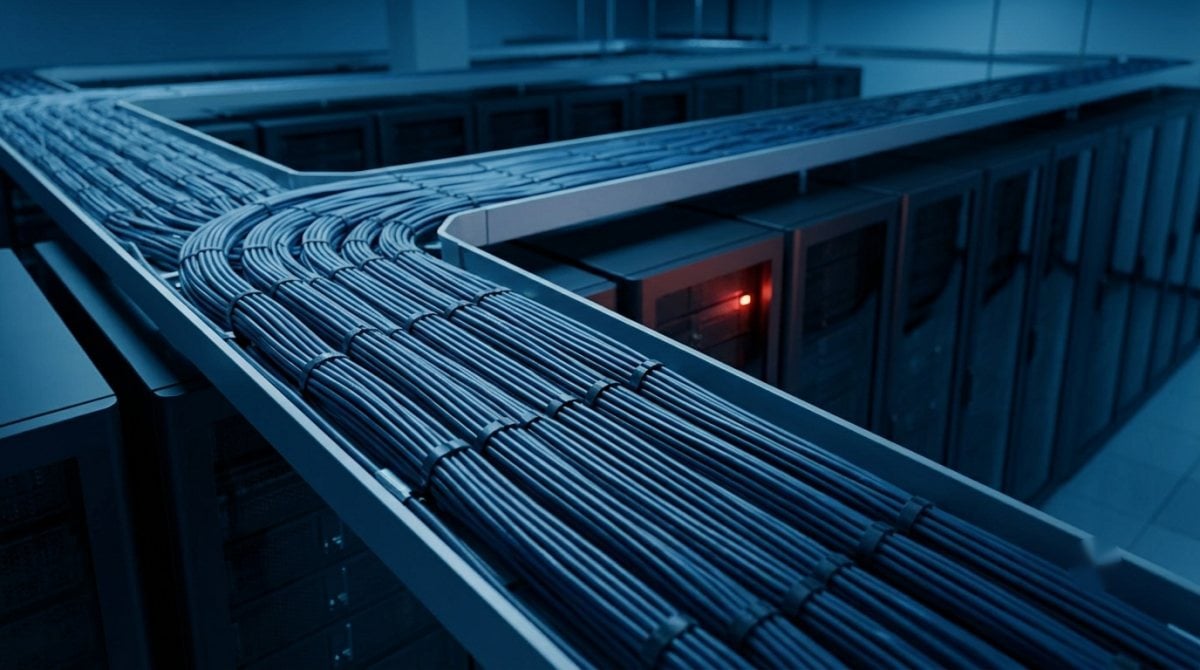

Common Applications

Frequently Asked Questions

What is the difference between Cat6 and Cat6a?

The key difference is 10GbE distance. Cat6 is rated to 250 MHz and carries 10GbE only over shorter runs (commonly up to about 55 meters on compliant channels), while Cat6a is rated to 500 MHz and is specified for 10GbE to the full 100 meters because it is designed and tested to resist alien crosstalk. Cat6a is also physically larger, heavier, and more expensive as a result.

What is Cat6a?

Cat6a (“augmented Category 6”) is a twisted-pair cabling category rated to 500 MHz and specified to carry 10GBASE-T across a full 100-meter channel. Its defining feature is controlled alien crosstalk — resistance to noise from neighboring cables in a bundle — achieved through larger geometry and, in shielded versions, an overall foil. It uses the same RJ45 interface as Cat5e and Cat6.

Is Cat6a worth it over Cat6?

It depends on the run. Cat6a is worth it for 10GbE beyond about 55 meters, for dense bundles where alien crosstalk accumulates, and for large PoE++ deployments. For short 10GbE links, sub-10G networks, or tight pathways, Cat6 is lighter, cheaper, and easier to terminate, so paying for Cat6a there adds cost without benefit.

Is there a difference between Cat6a and Cat6e?

Yes, in the important sense that “Cat6e” is not a recognized TIA category — it is a marketing term some vendors use, with no standardized performance behind it. The standardized categories are Cat6 and Cat6a. If you need guaranteed 10GbE to 100 meters, specify Cat6a, not “Cat6e.”

What is the difference between Cat5e and Cat6a?

It is a large jump. Cat5e is rated to 100 MHz and certified for 1 Gbps; Cat6a is rated to 500 MHz and carries 10GbE to 100 meters with controlled alien crosstalk. Cat6a is considerably thicker and more expensive, so it is reserved for runs that actually need 10GbE rather than general gigabit drops.

Does Cat6a have to be shielded?

No. Unshielded (UTP) Cat6a meets the standard through its cable geometry and is widely used. Shielded Cat6a (F/UTP or S/FTP) is chosen for high-EMI environments, but it only helps when the shield is properly bonded and grounded end-to-end; a poorly terminated shield can perform no better than good UTP and complicates installation.

Is Cat6a backward compatible with Cat6?

Yes. Cat6a uses the same RJ45 interface and works with Cat6, Cat5e, and slower equipment, with each link running at the lowest common speed. To keep a true Cat6a channel, terminate it with Cat6a-rated jacks, keystones, and patch panels — mixing in Cat6 hardware downgrades the channel.

References

1. ANSI/TIA-568.2-D, Balanced Twisted-Pair Telecommunications Cabling and Components Standard — Telecommunications Industry Association. tiaonline.org. Accessed June 2026.
2. IEEE 802.3 Standard for Ethernet (incl. 802.3an 10GBASE-T) — IEEE Standards Association. standards.ieee.org. Accessed June 2026.
3. IEEE 802.3bt, Power over Ethernet (Type 3 / Type 4) — IEEE Standards Association. standards.ieee.org. Accessed June 2026.
4. TIA TSB-155-A, Guidelines on Alien Crosstalk and 10GBASE-T over Category 6 Cabling — Telecommunications Industry Association. tiaonline.org. Accessed June 2026.
