C19 vs C20: What the 16A Rating Means for High-Draw Servers — and Why C13 Won't Do

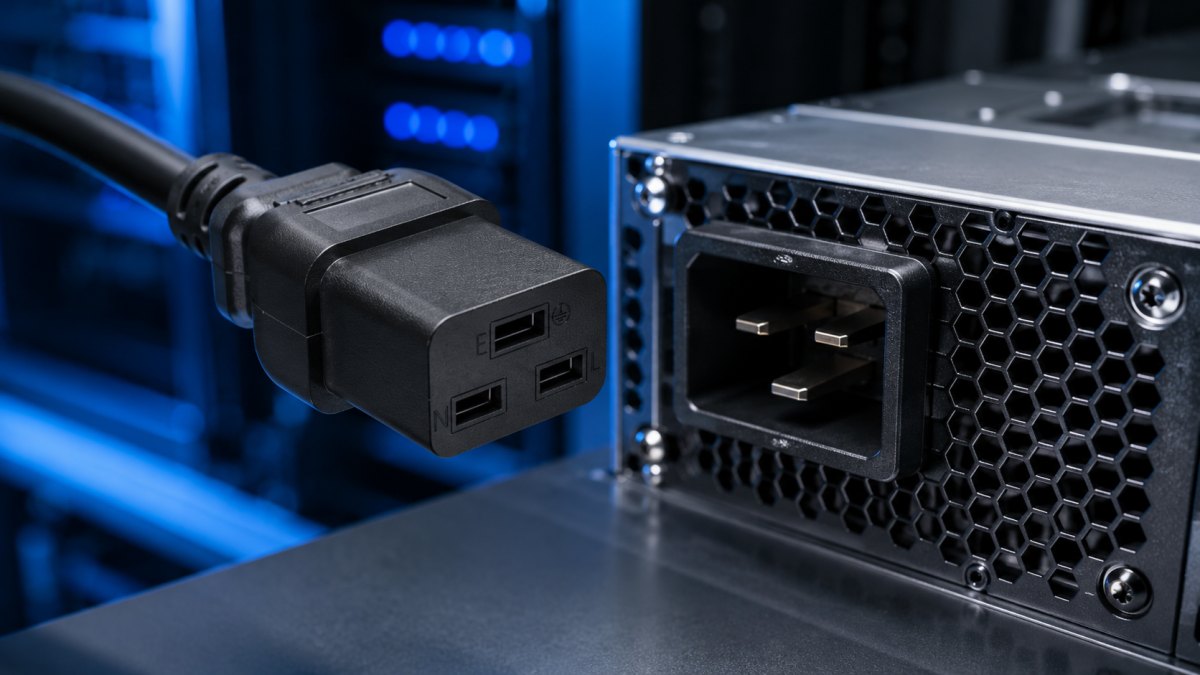

The new blade server chassis arrived, and the power cords from the previous rack deployment went straight into the cable bin — because the PSU inlets were C20, not C14. C13 cords do not fit C20 inlets. The connectors are physically larger and the keying is different, so there is no field workaround. For high-draw servers, UPS units above 1500VA, and high-density PDU inputs, the C19/C20 pair is the correct IEC connector — and ordering C13/C14 cords by mistake means the rack does not power up on day one.

This guide explains what C19 and C20 are, how they differ from C13/C14, where the 16A rating ceiling matters in dense rack environments, and what to verify before placing a bulk cord order for high-draw equipment.

What Are C19 and C20?

The C19 is an IEC 60320-1 female coupler — the cord end that connects to equipment. The C20 is the matching male inlet built into the server, UPS, or PDU. Both are rated at 16A / 250V under IEC 60320-1, making them the higher-amperage tier of the same connector family as C13/C14 (which top out at 10A/250V). In North American UL-listed cord sets, C19/C20 pairs are typically rated 20A / 125V.

Like all IEC 60320 connectors, the C19/C20 pair spans two separate governing standards depending on which end of the cord you are looking at. The wall-plug end — typically a NEMA L6-30P for 30A circuits, NEMA 5-20P for 20A/125V, or an IEC C20 for rack jumper cords — is covered by NEMA WD 6 in North America. The equipment end (C19 coupler and C20 inlet) is governed by IEC 60320-1, the international standard for appliance couplers. Neither standard covers the other end — which is why a single C19 cord references both. For a detailed breakdown of how IEC and NEMA standards divide a power cord, see our C13/C14 guide.

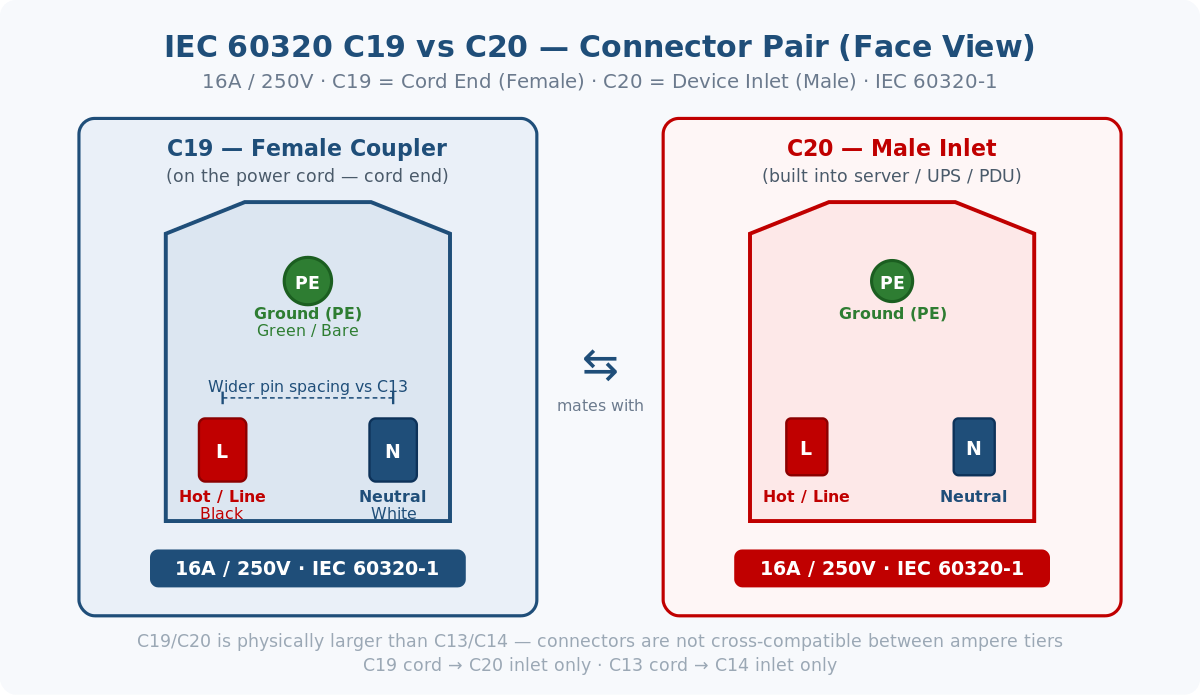

C19 vs C20: Mating Pair Specifications

C19 and C20 are always a mating pair — not two names for the same connector. The C19 is always on the cord; the C20 is always on the device:

North American cord set ratings per UL 60320-1. ul.com.

C19/C20 vs C13/C14: Choosing the Right Ampere Tier

C19/C20 and C13/C14 are in the same IEC 60320 family but serve different ampere tiers. The physical size difference between the two pairs is the built-in safety interlock — a C19 cord cannot be inserted into a C14 inlet, and a C13 cord cannot fit a C20 inlet:

80% continuous load rule per NEC Article 210.19 (NFPA 70). nfpa.org.

The decision rule is straightforward: check the equipment nameplate. If the input ampere rating exceeds 10A (IEC) or 13A (UL-rated C13 cord), the device requires C19/C20. If it is under 10A, C13/C14 is the correct and lower-cost choice.

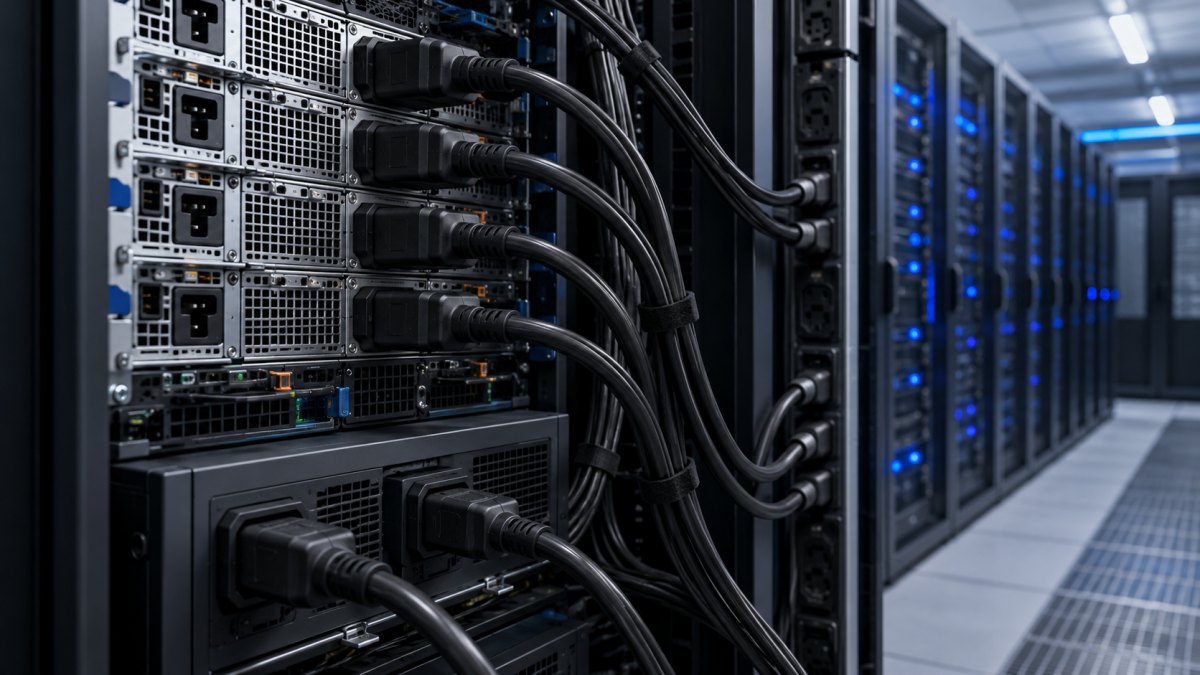

Common Applications

When C19/C20 Is More Than You Need

C19/C20 cords are the correct choice for high-draw equipment, but specifying them across an entire rack is unnecessary and increases procurement cost. C19/C20 cords are not required — and add no safety or performance benefit — for:

• Standard 1U rack servers drawing under 8A per PSU. Most entry-level and mid-range 1U servers with 300–550W PSUs operate well within the C13/C14 10A ceiling at typical workloads.
• Managed network switches and patch panels. Even 48-port PoE+ switches rarely exceed 8–9A input; C13/C14 is the correct and standard cord for this equipment class.
• KVM consoles, rack monitors, and 1U accessories. These draw 1–3A at most; C13/C14 is correct and C19/C20 connectors will not fit their C14 inlets.
• Small UPS units under 1500VA. Most sub-1500VA UPS models have C14 inlets and ship with C13 cords; verify the inlet type on the rear panel before specifying replacement cords.

What to Check Before You Order

1. Confirm the device inlet is C20, not C14. C19 fits C20 inlets only. If the inlet is C14, you need a C13 cord — the C19 connector is physically larger and will not fit.
2. Verify nameplate input amperage exceeds 10A. If the nameplate shows ≤10A input, C13/C14 cords are sufficient. C19/C20 is the correct step-up only when the load genuinely requires it.
3. Check the wall-end plug type. C19 cords for North American 20A/125V circuits typically use a NEMA 5-20P wall-end plug. For 208V or 240V equipment, specify the appropriate twist-lock or IEC plug on the wall end.
4. Specify cord length by rack unit position. Measure from the PDU or circuit outlet to the equipment inlet; over-length cords in high-density racks create cable management problems that are difficult to correct after commissioning.
5. UL 60320-1 listing for North American deployments. The complete cord set — coupler, cable, and plug — should carry a UL mark. Request the UL file number for bulk orders and verify at UL Product iQ.
6. Consider locking C19 for vibration-prone or high-traffic environments. Locking C19 connectors require a deliberate press-and-pull to release, preventing accidental disconnection in mobile or high-access rack deployments.

→ Browse C19 Power Cords — C19 to NEMA 5-20P and C19 to C20 jumper cords, UL-listed, multiple lengths ⚠️ Verify URL against Internal Link URL Map before publishing

Frequently Asked Questions

What is a C19 connector?

The C19 is an IEC 60320-1 female coupler found on the equipment end of a power cord. It is rated at 16A/250V (or typically 20A/125V in UL-listed North American cord sets) and is physically larger than the C13 coupler used on standard server cords. The C19 end plugs into a C20 male inlet built into high-draw servers, large UPS units, or high-capacity PDUs. It is the higher-amperage tier above C13/C14 in the IEC 60320 connector family.

What is a C20 inlet?

The C20 is a male appliance inlet — the socket built into the equipment, not a connector on a cord. A C20 inlet accepts a C19 female coupler from a power cord. It is rated at 16A/250V under IEC 60320-1 and is the standard high-amperage power inlet found on high-draw rack servers, blade server chassis, large UPS units above 1500VA, and high-capacity PDU inputs. If you need a cord to connect to a device with a C20 inlet, you need a C19 cord — not a C13 cord.

What is the difference between C19 and C13?

Both C19 and C13 are female IEC couplers on the cord end, but they differ in rated amperage and physical size. C13 is rated 10A/250V and is used for standard 1U servers, switches, and monitors. C19 is rated 16A/250V and is used for high-draw servers, blade enclosures, and large UPS units. The connectors are physically incompatible — a C19 cord will not fit a C14 inlet, and a C13 cord will not fit a C20 inlet. The size difference is the built-in safety interlock that prevents cross-connection between ampere tiers.

What is a C19 vs C20?

C19 and C20 are the two halves of a mating pair under IEC 60320-1. The C19 is the female coupler on the power cord; the C20 is the male inlet built into the device. They always work together: C19 on the cord plugs into C20 on the equipment. Neither designation is interchangeable with the other — ordering a "C20 cable" when you need a cord to connect to a C20 inlet means you need a C19 cord (female end), not a C20 plug (which would be a different connector entirely).

Can I use a C13 cord on a server with a C20 inlet?

No. C13 and C20 are physically incompatible — the C13 coupler is smaller than the C20 inlet and will not insert. There is no adapter that safely bridges the ampere classes, as C13 cords are not rated for the higher current draw of C20 equipment. If your server has a C20 inlet, you must use a C19 cord rated for 16A/250V (or 20A/125V UL). Using an undersized cord on high-draw equipment is a fire and equipment damage risk.

How do I know if my server needs C13 or C19?

Check two things: the inlet shape on the rear of the server PSU, and the nameplate input ampere rating. C14 inlets (for C13 cords) are narrower and smaller; C20 inlets (for C19 cords) are wider and taller. On the nameplate, an input rating above 10A (IEC) or 13A (UL) indicates C19/C20 is required. If both PSUs together exceed these figures, specify C19 cords for each PSU inlet. When in doubt, read the server's power specifications in the manufacturer's datasheet rather than estimating from wattage labels.

References

1. IEC 60320-1 — Appliance Couplers for Household and Similar General Purposes — Part 1: General Requirements. International Electrotechnical Commission. iec.ch. Accessed: June 2026.
2. UL 60320-1 — Standard for Safety of Appliance Couplers — Part 1. UL. ul.com. Accessed: June 2026.
3. NFPA 70 — National Electrical Code, Article 210.19 (Branch-Circuit Conductors — Continuous Loads). National Fire Protection Association. nfpa.org. Accessed: June 2026.
