Cat5e vs Cat6: What the Spec Difference Actually Means for Your Network

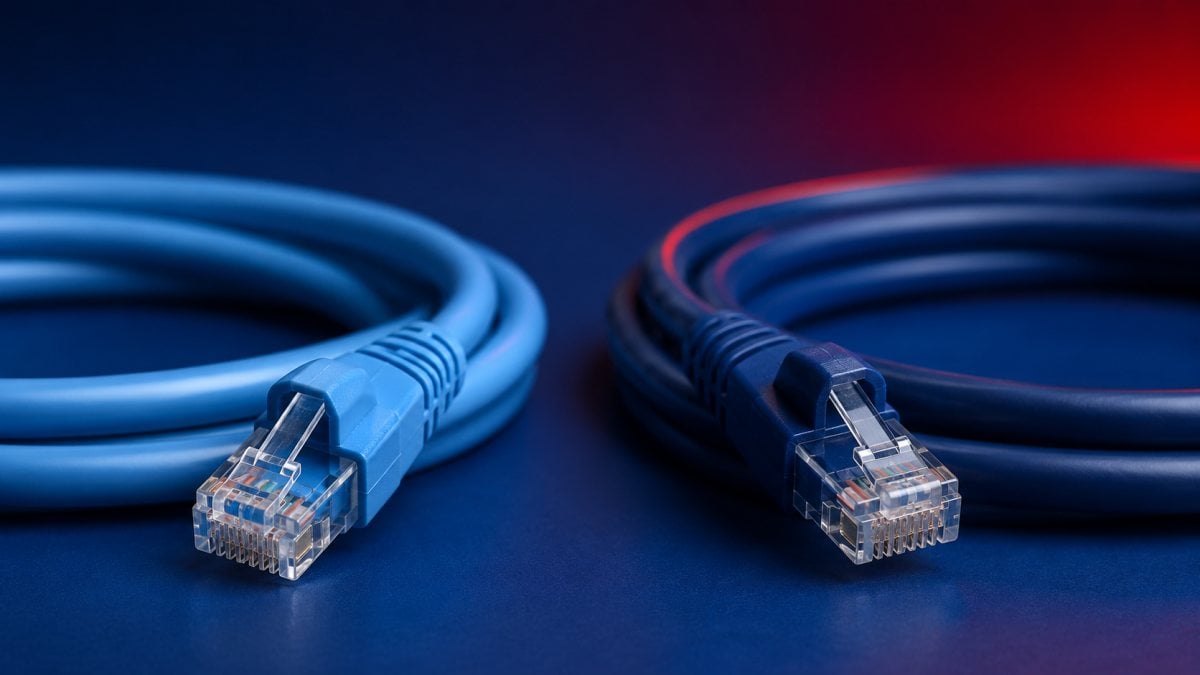

Cat5e and Cat6 patch cords look identical — same RJ45 plugs, same jacket diameter, often the same blue jacket — and that is exactly how the wrong one ends up in a 200-foot in-wall run. Nobody catches it at install time, because both happily carry 1 Gbps. The trouble surfaces months later, when someone swaps in a multi-gig switch, hangs a 60-watt PoE++ access point, or tries to push 10GbE to a server two racks over — and the link negotiates down, drops frames under load, or the bundle runs hot. By then the cable is behind drywall, and the fix is a re-pull, not a swap.

This guide breaks down Cat5e vs Cat6 the way a network installer or IT buyer actually has to decide it: what each category guarantees, where the real performance gap lives, how PoE and 10GbE change the math, and which one to run for a given job.

Quick Answer: Cat5e vs Cat6

For most 1 GbE home and office networks, a Cat5e cable is enough. Choose Cat6 for new in-wall cabling, PoE++ devices, multi-gig networks, and short 10GbE runs, where its higher bandwidth gives useful headroom. For guaranteed 10GbE up to 100 meters, step up to Cat6A. Both Cat5e and Cat6 use the same RJ45 connector and interoperate freely, so any single link runs at the speed of its weakest component.

What Cat5e and Cat6 Actually Are

Both are categories of balanced twisted-pair copper defined by the structured-cabling standard ANSI/TIA-568.2-D. Each uses four twisted pairs and the same 8-position RJ45 interface, so they are mechanically interchangeable. The difference is electrical headroom.

A Cat5e ethernet cable is rated to 100 MHz and certified for 1000BASE-T (1 Gbps) to 100 meters. Cat6 is rated to 250 MHz, supports the same 1 Gbps to 100 m, and additionally qualifies for 10GBASE-T (10 Gbps) over shorter distances. That extra bandwidth is the whole story — everything below is a consequence of it.

Cat5e vs Cat6: The Specs That Decide It

Headline data rate is where most buyers stop reading, and it is the least useful number — both do gigabit. The rows that actually drive a decision are bandwidth, 10GbE reach, and conductor gauge, because those determine future headroom and how the cable behaves under PoE load.

Distances per IEEE 802.3 / ANSI/TIA-568.2-D for compliant, fully-terminated channels. 10GBASE-T reach on Cat6 depends on alien crosstalk in the bundle (TIA TSB-155-A); Cat6A is required for guaranteed 10GbE to 100 m. Conductor gauge is typical, not mandated.

Why Cat6 Carries More — the Mechanism

The 100 MHz-to-250 MHz jump is not marketing. 10GBASE-T signals across a wider frequency band, and noise rises with frequency, so the cable has to fight crosstalk harder. Cat6 does this three ways, and each has a practical consequence:

• Tighter, more precise pair twists cancel more near-end crosstalk (NEXT), which is what lets the channel stay clean at higher frequencies.

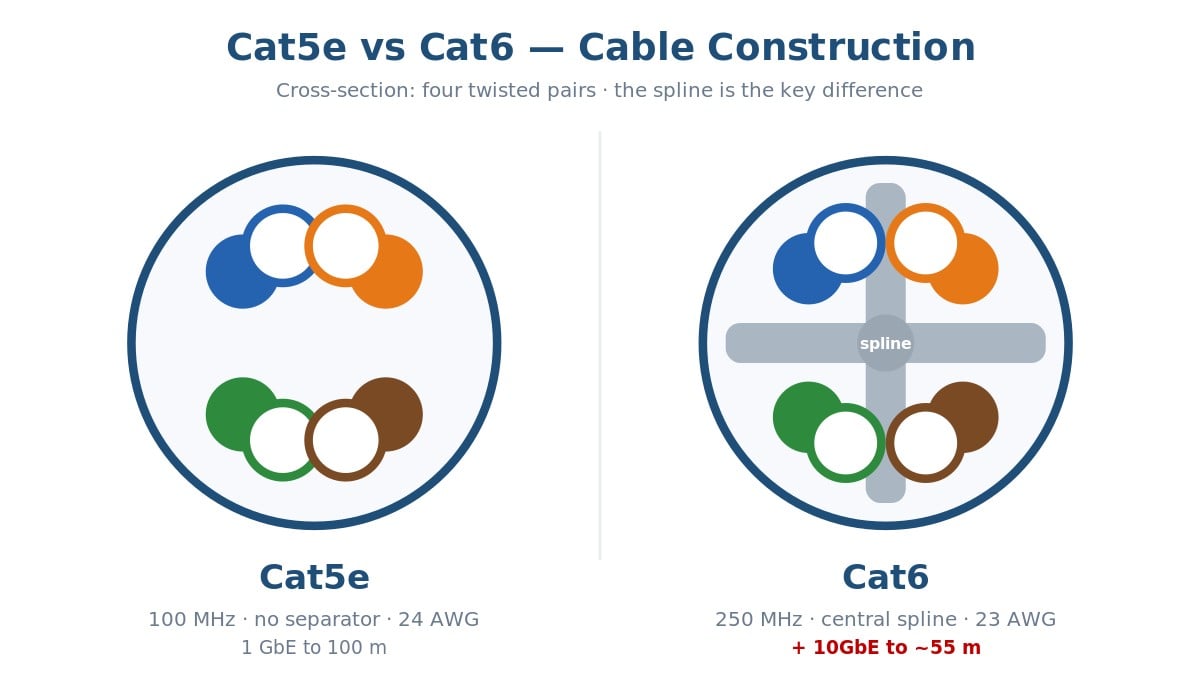

• A central spline (separator) holds the four pairs apart inside the jacket, lowering pair-to-pair coupling — the single biggest visual difference between the two cables in cross-section.
• A typically heavier 23 AWG conductor (versus 24 AWG for most Cat5e) has lower DC resistance. Under PoE that matters: when 30–100 watts flows down the same pairs carrying data, lower resistance tends to mean less heat. In densely packed bundles carrying high-wattage PoE, lower-resistance conductors help keep temperature rise within limits — though the actual margin depends on bundle size, ambient temperature, and installation conditions.

The flip side is the 10GbE distance ceiling. Because Cat6 controls but does not eliminate alien crosstalk (noise from neighboring cables in a bundle), its 10GBASE-T reach is typically limited to about 55 meters on compliant channels, and can be shorter in tightly packed trays — the exact figure depends on alien crosstalk and installation quality. If you need guaranteed 10GbE to a full 100 m, that is Cat6A territory, not Cat6.

Which Should You Run?

Choose Cat6 for any new in-wall or plenum run, for PoE++ devices (cameras, Wi-Fi 6/7 APs, powered displays), and for short 10GbE links between a switch and nearby servers. The logic is simple: cable outlives the gear plugged into it. A switch gets replaced in 3–5 years; in-wall cable stays for 15. The few cents per foot of difference is trivial next to the labor of re-pulling a wall — which is why most new structured cabling now uses Cat6 patch cables and bulk Cat6.

Choose Cat5e when the run is genuinely 1 GbE for its whole service life — VoIP phones, desktop access drops, short patch cords in a rack, or extending an existing Cat5e plant where mixing categories buys nothing. Cat5e patch cables are not obsolete; they are fully standards-compliant for gigabit and meaningfully cheaper. Over-buying Cat6A for a desk phone is just as much a mistake as under-speccing a 10GbE backbone.

Bottom line: unless you are certain a run will never exceed 1 Gbps and never carry high-wattage PoE, default to Cat6 for permanent infrastructure and keep Cat5e for short, known-1G patch and voice drops.

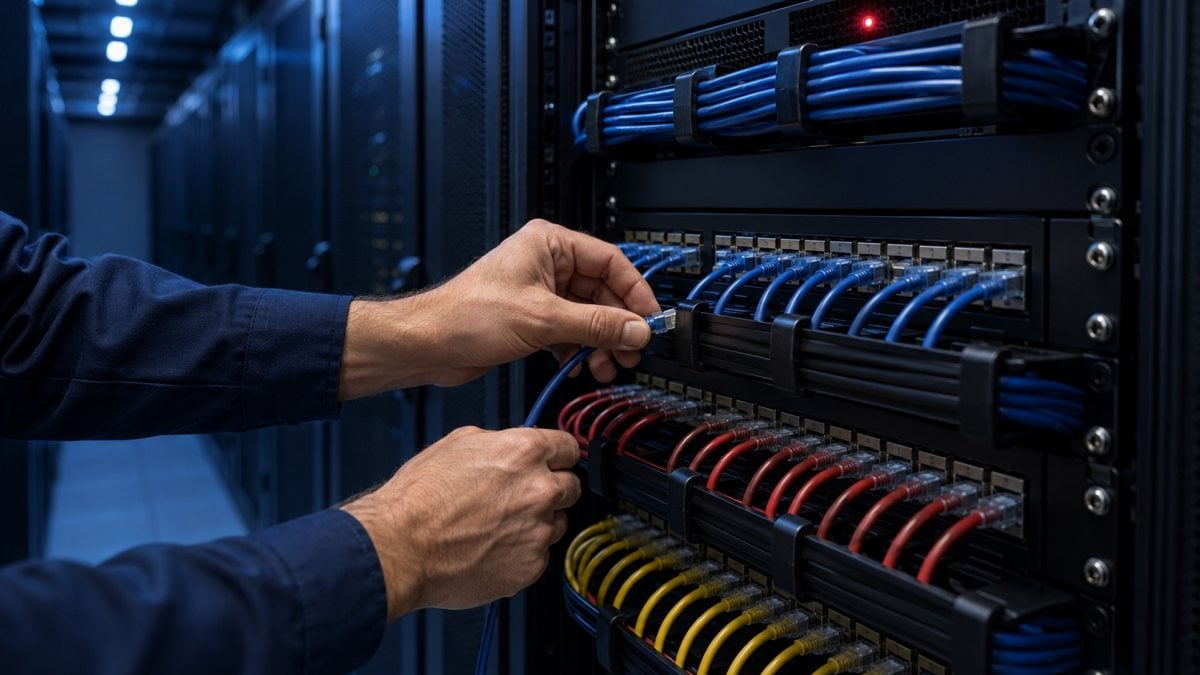

Common Applications

Frequently Asked Questions

What is the difference between Cat5 and Cat6?

The practical difference is bandwidth and headroom. Cat5e is rated to 100 MHz and certified for 1 Gbps; Cat6 is rated to 250 MHz, also does 1 Gbps, and additionally supports 10GbE over short distances. Plain Cat5 (without the “e”) is an older, obsolete grade and should not be used for new gigabit installs — if someone says “Cat5” today they almost always mean Cat5e.

Is Cat5 the same as Cat5e?

No. Cat5 is an older category, while Cat5e (“e” for enhanced) is the improved version with tighter crosstalk limits and is the grade commonly used for gigabit Ethernet today. Plain Cat5 has effectively been replaced and is not specified for new installs. Because Cat5 is obsolete, this guide focuses on the comparison that actually matters now: Cat5e vs Cat6.

Is Cat6 worth it over Cat5e?

For new permanent cabling, usually yes. The cost difference per foot is small, while Cat6 gives you multi-gig and short-run 10GbE headroom plus better behavior under high-wattage PoE. For short 1 GbE patch cords and voice drops that will never change, Cat5e is the more economical and perfectly valid choice.

Can I mix Cat5e and Cat6 on the same network?

Yes. They share the RJ45 interface and interoperate freely, but any single link runs at the speed of its weakest component. A Cat6 patch cord plugged into a Cat5e in-wall run is still a Cat5e channel. Plan the speed you need end-to-end, not segment by segment.

Does Cat6 support 10 Gbps?

Yes, but with a distance limit. Cat6 supports 10GBASE-T to roughly 55 meters, dropping toward 37 meters in densely bundled trays where alien crosstalk is high. For guaranteed 10GbE across a full 100-meter channel, you need Cat6A.

Is Cat6 better for PoE?

Generally yes. Cat6 typically uses a heavier 23 AWG conductor with lower DC resistance, so it dissipates less heat when carrying PoE+ or PoE++ power. In large, tightly packed bundles delivering 60–100 watts per port, that thermal margin helps keep the cable within insertion-loss spec.

Is Cat5e fast enough for home or office use?

For most 1 GbE workloads — internet up to a gigabit, streaming, VoIP, general office traffic — Cat5e is entirely sufficient. It becomes the limiting factor only when you move to multi-gig or 10GbE links, or run high-wattage PoE devices over long, bundled runs.

Do I need Cat6 for 1 Gbps internet?

No. Cat5e is certified for 1000BASE-T to 100 meters, so it handles gigabit internet without issue. Cat6 only becomes necessary if you expect to exceed 1 Gbps in the future or want the extra margin for PoE and longer runs.

References

1. ANSI/TIA-568.2-D, Balanced Twisted-Pair Telecommunications Cabling and Components Standard — Telecommunications Industry Association. tiaonline.org. Accessed June 2026.
2. IEEE 802.3 Standard for Ethernet (incl. 802.3an 10GBASE-T) — IEEE Standards Association. standards.ieee.org. Accessed June 2026.
3. IEEE 802.3bt, Power over Ethernet (Type 3 / Type 4) — IEEE Standards Association. standards.ieee.org. Accessed June 2026.
4. TIA TSB-155-A, Guidelines for 10GBASE-T over Category 6 Cabling — Telecommunications Industry Association. tiaonline.org. Accessed June 2026.
