NEMA 5-15P Plug: What the Ratings Mean and Why Mismatching It Trips Breakers

The purchase order said "standard US power cord" and the cords arrived looking correct — right until the breaker tripped during a load test. The problem was not the outlet or the server. It was a 16 AWG cord pulled to 14 amps on a circuit with no headroom. The NEMA designation printed on the plug answers every question about what a cord can safely carry, which outlet it pairs with, and whether it belongs in a rack or a server room — but only if you know how to read it.

This guide breaks down what the NEMA 5-15P rating means, how its pinout enforces polarity and grounding, which receptacle it mates with, and when to step up to a higher-amperage connector for demanding IT and data center environments.

What Is a NEMA 5-15P Plug?

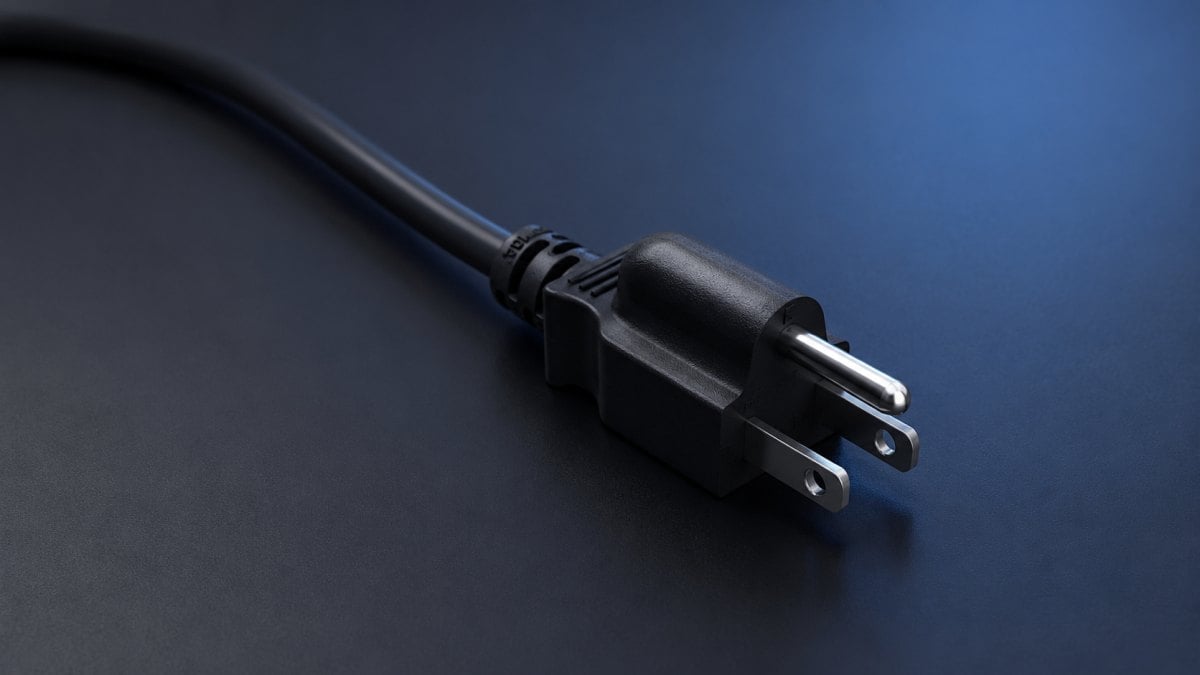

The NEMA 5-15P is a two-pole, three-wire grounding plug rated for 15 amperes at 125 volts AC — the standard general-purpose plug configuration for the United States, Canada, and Mexico. It carries two flat parallel blades (one narrow, one wide) and a U-shaped grounding pin, and it mates with the NEMA 5-15R receptacle found in virtually every North American wall outlet and power strip.

The suffix "P" identifies it as a plug — the male connector on the cord end. Its matching female outlet, built into the wall, rack PDU, or UPS output, carries the designation NEMA 5-15R. Ordering a cord or device without checking both sides of the pairing is one of the most common causes of on-site power mismatches in B2B deployments.

NEMA Connector Code Explained

NEMA designations follow a structured format defined in NEMA WD 6 — the standard governing general-purpose wiring devices across North America. Once you understand the code, any NEMA plug or receptacle spec becomes self-explanatory:

Source: NEMA WD 6 — General-Purpose Wiring Devices. nema.org.

The configuration group locks in the voltage class and blade geometry. Moving to a higher-amperage device in the same group — for example, the NEMA 5-20P (20A) — changes the neutral blade to a T-shape, physically preventing a 20A plug from being inserted into a 15A receptacle. That geometric interlock is intentional: it stops under-rated cords from reaching over-rated circuits.

Pinout and Blade Specifications

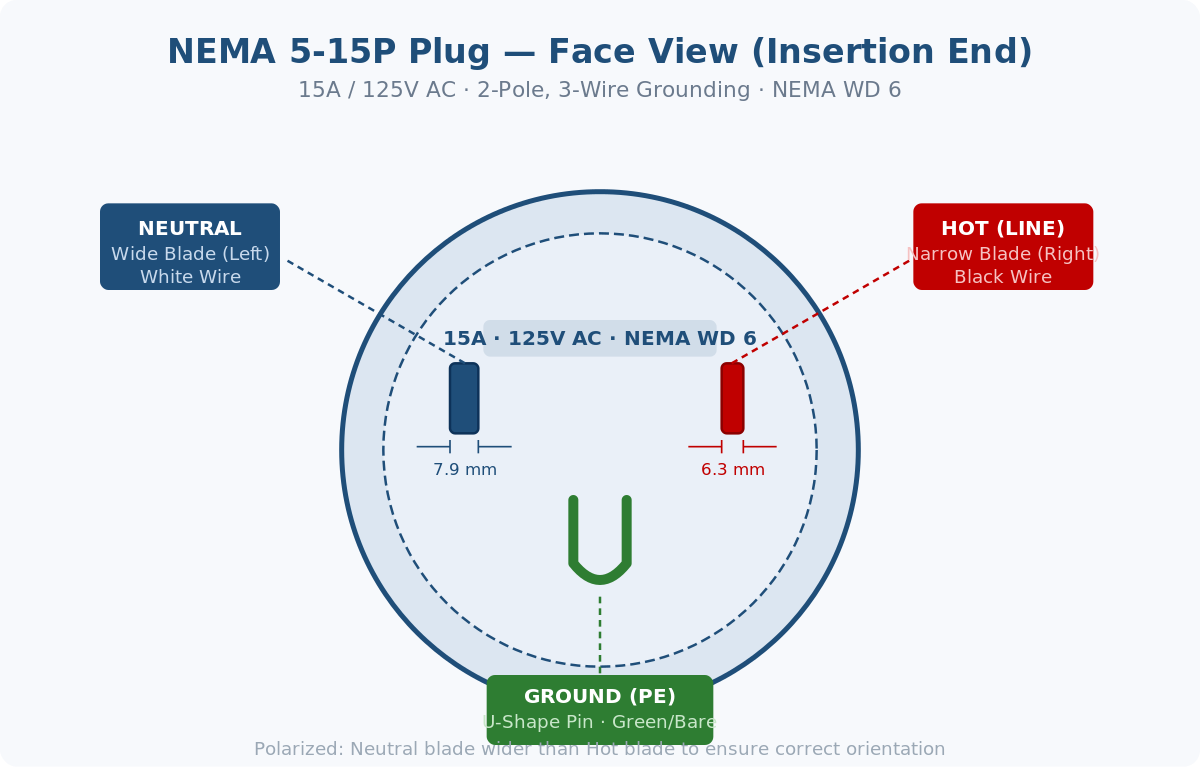

Looking straight at the face (insertion end) of a NEMA 5-15P plug, the three conductors are arranged as follows:

Blade dimensions per NEMA WD 6. Wire colors per NEC Article 200 (neutral) and Article 250 (ground). NFPA 70, nfpa.org.

Why the blades are different widths: The neutral blade is intentionally wider than the hot blade. This polarization forces correct orientation in polarized receptacles, ensuring the hot conductor always connects to the correct switch leg inside equipment. Reversing polarity — possible only on two-prong unpolarized cords — can leave a device's chassis or internal switch contacts energized even when the power switch is off.

Why the ground pin is longer: The U-shaped ground pin extends slightly farther than the blades, so it makes contact first on insertion and breaks contact last on removal. This ensures the equipment chassis is grounded before any line voltage is applied — a key safety requirement under UL 817 for cord sets.

5-15P vs 5-15R: Plug vs Receptacle

The 5-15P and 5-15R are the two halves of the same mating pair. Confusing them is the most common sourcing error when specifying both cords and PDUs in the same purchase order:

A NEMA 5-20R receptacle (T-slot) accepts 5-15P plugs, but the circuit must support 20A if a 20A device is ever connected. The receptacle slot shape does not upgrade the circuit's wiring or breaker rating.

Common Applications

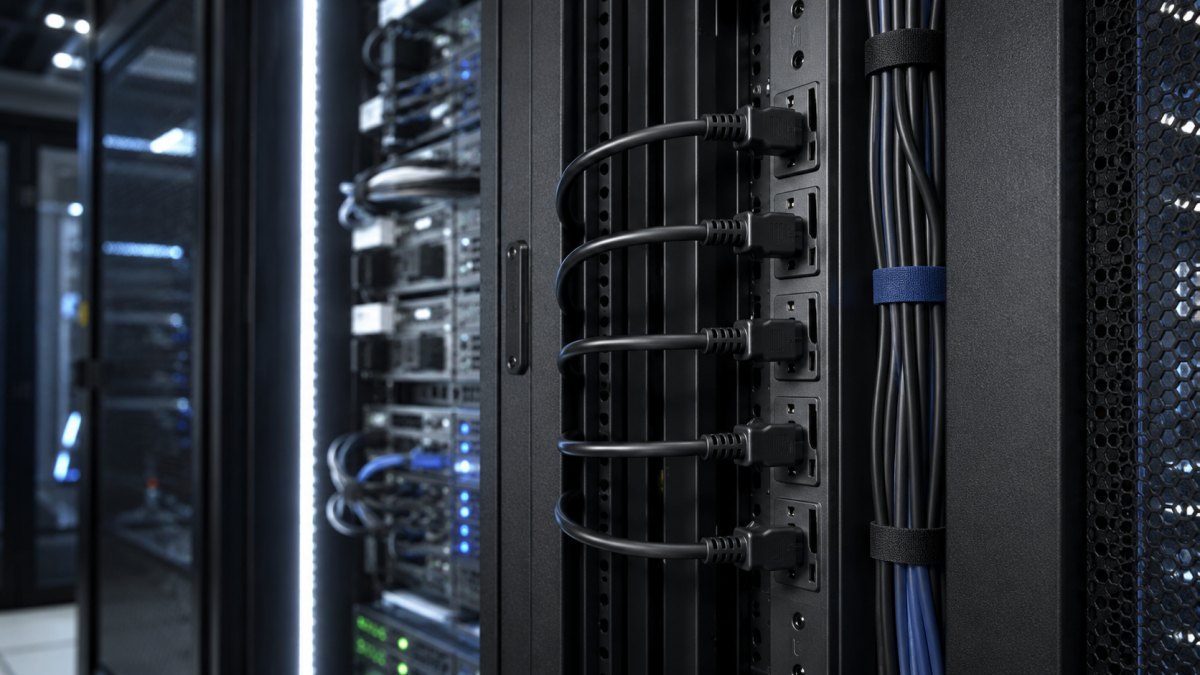

The NEMA 5-15P is the default power plug for most North American office and light commercial equipment. In B2B environments, it appears on:

When NEMA 5-15P Is Not Enough

The 15A/125V rating is a hard ceiling, not a guideline. For these scenarios, the 5-15P is the wrong connector regardless of what fits:

• 1U and 2U rack servers with dual PSUs: Input current per PSU can reach 8–12A at full load. Two PSUs sharing a single 15A circuit push well past the 12A continuous limit.
• Laser printers in high-volume production: Inrush current during the fuser warm-up cycle can hit 12–15A. On a 15A circuit, that leaves zero headroom and nuisance tripping is common.
• Managed PoE switches with full port loading: A 24-port PoE+ switch at 30W per port outputs 720W — the input draw at 85% PSU efficiency is roughly 7A, which is manageable, but larger 48-port switches easily exceed 12A input.
• UPS units above 1500VA: Most 1500VA+ UPS units specify a NEMA 5-20P input plug or a hardwired IEC C20 inlet. Verify the input connector before ordering replacement cords.
• Any equipment with a nameplate rating above 12A: If the equipment label says ">12A" or ">1500W" at 125V, do not use a 5-15P cord on a standard 15A branch circuit.

What to Check Before You Order

For B2B bulk orders, a pre-order checklist prevents returns and on-site rework:

1. Equipment nameplate amperage: The label on the equipment — not the power supply box — states the maximum input current. Match the cord and circuit to this figure.
2. Wire gauge: 16 AWG (SJT/SJTW) is rated for 13A maximum in cord sets under UL 817. For equipment drawing 13–15A, specify 14 AWG to stay within conductor ampacity.
3. Jacket type: SJT = dry indoor use; SJTW = weather-resistant jacket for damp or outdoor locations. For server rooms and data centers, SJT is the standard; for loading docks or outdoor kiosks, specify SJTW.
4. UL listing: The plug body, connector, and assembled cord set must carry a UL mark. For bulk orders, request the UL file number and verify it at UL Product iQ (ul.com).
5. Length and voltage drop: At 15A, a 16 AWG cord longer than 25 ft can introduce meaningful voltage drop. For long runs, specify 14 AWG or shorten the cord run and use a proper branch circuit extension.
6. Polarization confirmation: Specify polarized cords (required by UL 817 for cord sets connected to polarized receptacles). Non-polarized two-blade cords do not apply here, but confirm your supplier ships polarized 5-15P cord sets, not generic replacements.

→ Browse NEMA 5-15P Power Cords — UL-listed, SJT/SJTW, 14 AWG and 16 AWG, multiple lengths ⚠️ Verify URL against Internal Link URL Map before publishing

Frequently Asked Questions

What is a NEMA 5-15P plug?

A NEMA 5-15P is a three-prong grounding plug rated for 15 amperes at 125 volts AC. It has two flat parallel blades — a narrow hot blade (6.3 mm, right side) and a wider neutral blade (7.9 mm, left side) — plus a U-shaped grounding pin at the bottom. The suffix "P" means plug (male connector on the cord end). It is the standard general-purpose power plug used across the United States, Canada, and Mexico on computers, monitors, network equipment, and most office appliances.

What is NEMA 5-15R?

The NEMA 5-15R is the matching female receptacle — the outlet — that accepts a NEMA 5-15P plug. The "R" stands for receptacle. It is the standard three-prong wall outlet found throughout North America, rated at 15A/125V. A 5-15R receptacle will also accept a NEMA 5-20P plug (the 20A version with a T-shaped neutral blade), but only if the circuit wiring and breaker are rated for 20 amperes — the receptacle slot shape does not change the circuit capacity.

What is the difference between NEMA 5-15P and NEMA 5-20P?

Both are 125V North American plugs in the same configuration group, but the 5-20P is rated for 20 amperes versus 15 amperes for the 5-15P. The physical difference is the neutral blade: the 5-15P neutral is a plain flat vertical blade, while the 5-20P neutral is rotated 90° into a T-shape. This T-shape prevents a 20A plug from being accidentally inserted into a 15A receptacle — a built-in safety interlock defined by NEMA WD 6.

How do I know if my power cord is UL-listed?

A genuine UL-listed cord set has a UL mark embossed on the plug body and printed on the jacket at regular intervals. The listing covers the complete assembled cord, not just individual components. For bulk procurement, ask the supplier for the UL file number and cross-check it at UL Product iQ. Unmarked or counterfeit cords may not meet ampacity, insulation, or grounding requirements under UL 817.

Can I use a NEMA 5-15P cord on a 20A circuit?

A 5-15P plug fits into a NEMA 5-20R receptacle (which accepts both 15A and 20A plugs), so the physical connection is possible. However, the cord is still rated only for 15A — the 20A breaker may not trip until well above the cord's rated capacity, which creates a fire risk. Always match the cord's ampacity to the equipment's input current, not to the receptacle or breaker size. If equipment draws close to or above 15A, specify a 5-20P cord and a dedicated 20A circuit.

What wire gauge should I use for a NEMA 5-15P cord?

Under UL 817, a 16 AWG (SJT) cord is rated for up to 13A in a cord set application. For equipment drawing 13–15A, specify 14 AWG to stay within conductor ampacity. For typical IT office equipment drawing 2–8A, 16 AWG SJT is standard and sufficient. Longer cord runs (over 15–20 ft) should also use 14 AWG to limit voltage drop at higher loads.

References

1. NEMA WD 6 — General-Purpose Wiring Devices. National Electrical Manufacturers Association. nema.org. Accessed: June 2026.
2. UL 817 — Standard for Cord Sets and Power-Supply Cords. UL. ul.com. Accessed: June 2026.
3. NFPA 70 — National Electrical Code, Article 210.19 (Branch-Circuit Conductors — Continuous Loads). National Fire Protection Association. nfpa.org. Accessed: June 2026.
4. NFPA 70 — National Electrical Code, Article 310.15 (Conductor Ampacity). National Fire Protection Association. nfpa.org. Accessed: June 2026.
