What Is a C13 Power Cord? How the C13/C14 Pairing Works — and When to Step Up

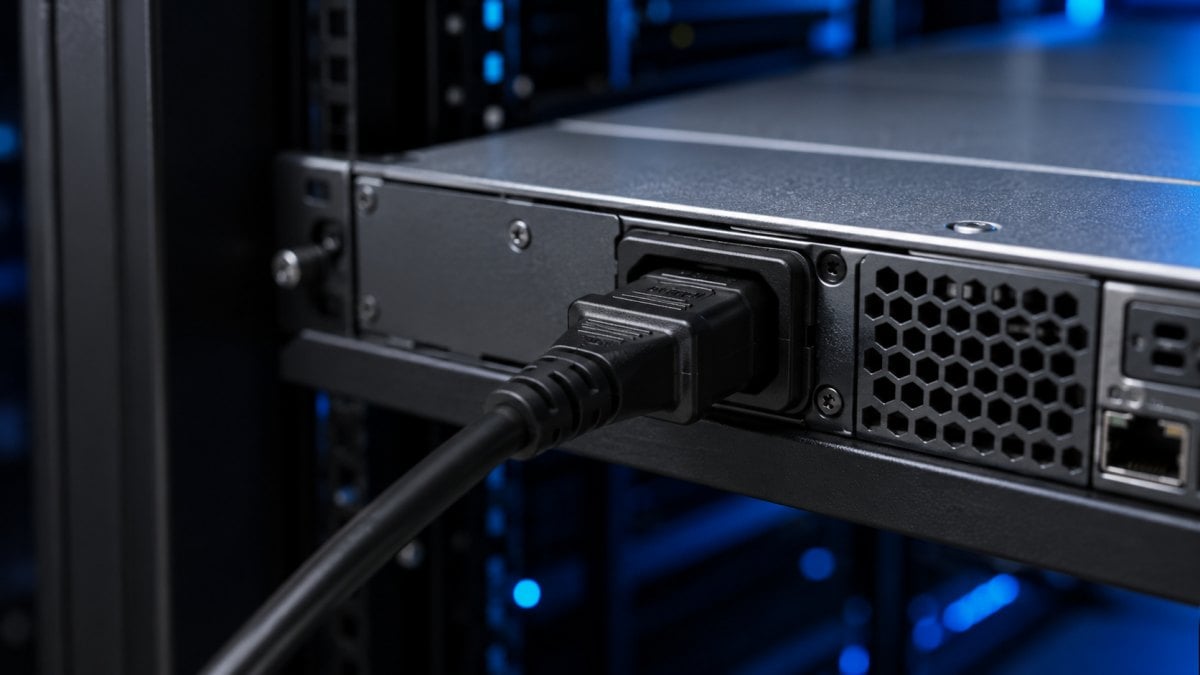

C13 power cord connector plugging into a C14 inlet on a 1U rack server in a data center environment

The rack PDU was installed, the servers were mounted, and the power cords arrived on schedule — except half of them had the wrong connector on the equipment end. A C19 coupler does not fit a C14 inlet. A C13 cord rated 10A will not reach 16A equipment that requires C20. Neither mismatch is obvious from a product photo, and most distributor listings use "IEC power cord" without specifying which end is which. Getting the C13/C14 pairing wrong during a data center buildout means same-day returns and delayed rack commissioning.

This guide explains what a C13 power cord is, how C13 and C14 work as a mating pair under IEC 60320-1, where the 10A rating ceiling matters for dense rack deployments, and when to step up to C19/C20 for higher-draw equipment.

What Is a C13 Power Cord?

A C13 power cord is an IEC cord set with a C13 female coupler on the equipment end — the end that connects to the server, switch, or monitor — and a country-specific plug on the wall or PDU end. In North America, that wall-end plug is most often a NEMA 5-15P (15A/125V standard outlet) or a NEMA 5-20P (20A/125V) for higher-capacity circuits.

The C13 coupler plugs into the C14 male inlet built into the device. C13 and C14 are always a mating pair defined under IEC 60320-1 (Appliance Couplers for Household and Similar General Purposes): the C13 is always on the cord; the C14 is always on the equipment.

A complete North American server power cord falls under two separate standards — one for each end. The wall-plug end (NEMA 5-15P or 5-20P) is governed by NEMA WD 6, a North American standard covering plugs and receptacles. The equipment end (C13 coupler and C14 inlet) is governed by IEC 60320-1, an international standard covering appliance couplers used worldwide. Neither standard covers the other end of the cord — which is why a single cord set references both.

C13 vs C14: Mating Pair, Not Competing Options

C13 and C14 are not interchangeable names for the same connector. They are the two halves of one connection. Ordering "a C14 cable" when you need a cord to connect to a C14 inlet is the single most common sourcing error on first-time rack builds:

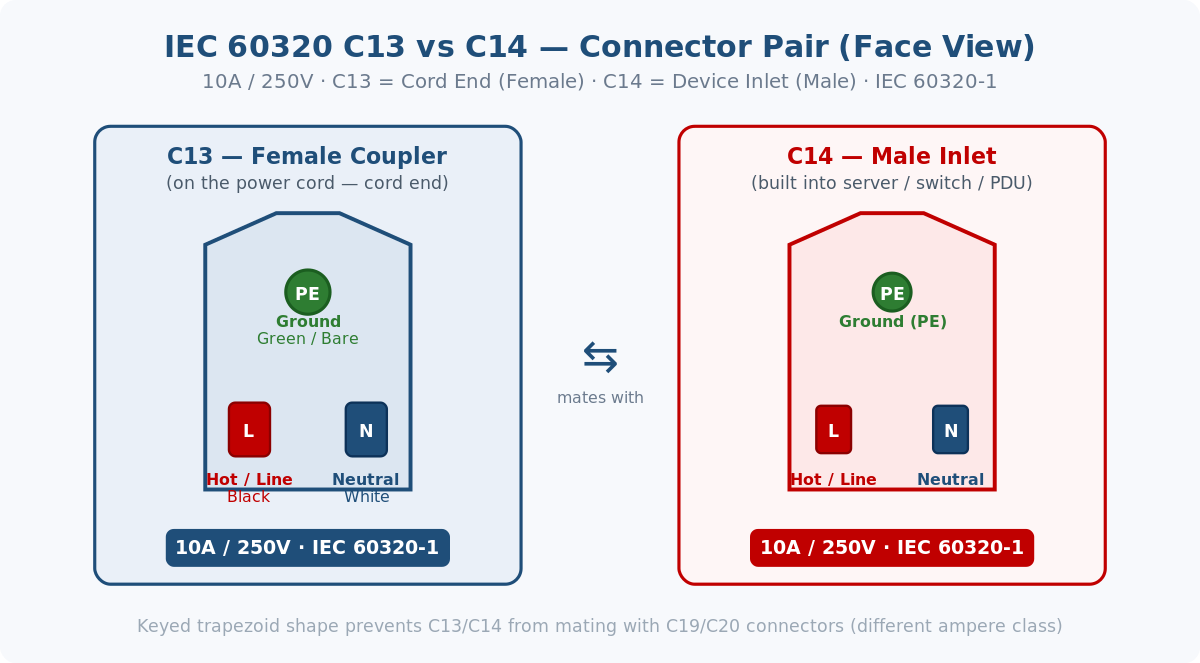

PropertyC13 (Female Coupler — Cord End)C14 (Male Inlet — Device Side)
GenderFemale (recessed contacts)Male (protruding pins)
LocationOn the power cordBuilt into server, switch, monitor, or PDU
FunctionPlugs into the device's C14 inletReceives the C13 cord coupler
IEC 60320-1 rating10A / 250V10A / 250V
North America (UL 60320-1)Typically 13A / 125V cord setsTypically 13A / 125V
Temperature class70°C (standard)70°C (standard)
Connector shapeKeyed trapezoid — fits C14 onlyKeyed trapezoid inlet — accepts C13 only
ContactsL (Line), N (Neutral), PE (Ground)L (Line), N (Neutral), PE (Ground)

Source: IEC 60320-1 — Appliance Couplers for Household and Similar General Purposes. IEC. iec.ch.

The trapezoidal keying is a physical interlock, not a styling choice. A C13 coupler cannot be inserted into a C19 inlet; a C19 coupler cannot fit a C14 inlet. This prevents accidental cross-connection between different ampere-class connectors in the field.

C13/C14 vs C19/C20: When to Step Up

C13/C14 and C19/C20 belong to the same IEC 60320 family but serve different ampere tiers. The physical connectors are sized differently and are not cross-compatible:

PropertyC13 / C14C19 / C20
IEC 60320-1 rating10A / 250V16A / 250V
North America (UL)Typically 13A / 125VTypically 20A / 125V
Typical rack use1U servers, switches, monitors, standard PDU outputsHigh-draw servers, blade enclosures, large UPS, PDU inputs
Connector sizeSmaller (standard)Larger — physically incompatible with C14/C13
Max continuous (80% NEC rule)~10.4A (UL 13A cord)~16A (UL 20A cord)
Locking versionsAvailable (IEC 60320-1 tab lock)Available

80% continuous load rule per NEC Article 210.19 (NFPA 70). nfpa.org.

Use C13/C14 for typical 1U rack servers, managed switches, and standard PDU output receptacles where per-device input current is under 10A. Step up to C19/C20 when the equipment nameplate shows input current above 10A, or for high-density blade enclosures and large PDUs whose total draw demands a higher-amperage feed.

Common Applications

EquipmentConnector PairNotes
1U / 2U rack servers (standard PSU)C13 cord → C14 inletVerify per-PSU input amperage on the nameplate, not VA
Managed network switches (24/48-port, 1U)C13 cord → C14 inletPoE switches: check total input draw, not per-port output
Standard rack PDU outputsC13 cord → C14 outlet on PDUMost 1U–2U PDUs ship with C13/C14 output sockets; verify PDU's per-outlet rating
KVM consoles, rack-mount monitorsC13 cord → C14 inletLow draw; often share a PDU branch with nearby gear
High-draw servers / dual-PSU bladesC19 cord → C20 inletDo not substitute C13 — connector geometry will not fit
Large UPS units (≥2000VA)C19 cord or hardwired → C20 or terminalCheck UPS input specification sheet before ordering cords

When the 10A Rating Limit Bites

On paper, a C13 cord at 10A (or 13A UL) has comfortable headroom for a 1U server pulling 4–6A. In dense rack deployments, two failure modes appear that the per-device figure alone does not expose:

  • Aggregate branch load on shared PDU circuits: A standard 1U PDU may distribute 12 C13/C14 outputs across a single 20A branch. If each device draws 1.5A, the branch carries 18A — past the 80% continuous limit of 16A for a 20A circuit. Count the branch total, not just the individual device draw.
  • PSU nameplate vs actual input: A server rated for a 750W redundant PSU pair draws significantly less at idle, but at sustained full load under CPU and memory stress, the input current can approach nameplate ratings. Circuit capacity planning should always use the nameplate ampere figure, not typical idle draw from monitoring dashboards.
Planning check: If the sum of equipment nameplate ampere ratings on a single PDU branch exceeds 80% of the branch breaker rating, redistribute loads across branches or step up to a higher-capacity PDU before the rack goes live. Adding cords and devices after commissioning is significantly more disruptive than planning it correctly upfront.

What to Check Before You Order

  1. Confirm the device inlet type — C14 or C20? C13 fits C14 inlets only. For C20 inlets, order a C19 cord. Check the inlet label or IEC sheet designation on the device's rear panel.
  2. Check the equipment nameplate ampere rating. If the device input exceeds 10A (IEC) or 13A (UL-listed cord), step up to C19/C20. Never exceed the cord's rated ampacity.
  3. Specify cord length by rack unit position. Measure from the PDU outlet to the device inlet — over-length cords generate excess slack that creates cable management problems in high-density racks.
  4. Specify UL 60320-1 listing for North American deployments. The cord set — plug, coupler, and cable — should carry a UL mark. Request the UL file number for bulk orders.
  5. Consider locking C13 for vibration-prone environments. Locking C13 connectors use a tab mechanism that requires deliberate press-and-pull to disconnect, preventing accidental pull-out in high-traffic or mobile rack deployments.
  6. Verify the wall-end plug matches the PDU or circuit. C13 cords ship with various wall-end plugs (NEMA 5-15P, 5-20P, IEC C20 for jumper cords). Confirm which plug type your PDU or circuit requires.

Browse C13 Power Cords — C13 to NEMA 5-15P and C13 to C20 jumper cords, UL-listed, multiple lengths ⚠️ Verify URL against Internal Link URL Map before publishing

Frequently Asked Questions

What is a C13 power cord?

A C13 power cord is an IEC 60320 cord set with a C13 female coupler on the equipment end and a country-specific plug — typically a NEMA 5-15P in North America — on the wall or PDU end. The C13 end plugs into the C14 male inlet built into the server, network switch, monitor, or PDU. The pair is rated at 10A/250V under IEC 60320-1, or typically 13A/125V in UL-listed North American cord sets.

What is a C14 plug?

The C14 is a male appliance inlet — the keyed socket built into the device, not a plug on a cord. A C14 inlet accepts a C13 female coupler from a power cord. It is rated at 10A/250V under IEC 60320-1 and is the standard power inlet for most 1U rack servers, managed switches, and rack PDU output receptacles. If you are looking for a cord to connect to a device with a C14 inlet, the cord you need has a C13 coupler on its equipment end.

What is a C13-to-C14 power cord?

A C13-to-C14 cord — sometimes called a jumper cord or rack jumper — has a C13 female coupler on one end and a C14 male plug on the other. Both ends share the 10A/250V IEC 60320-1 rating. These cords are used to extend reach from a PDU's C13 output receptacle to equipment with a C13 inlet, or to interconnect two pieces of rack gear. They are common in data centers where a standard IEC cord would be too long but a direct PDU connection is not possible.

What is the difference between C13 and C19?

Both C13 and C19 are female IEC couplers on the cord end, but they serve different ampere tiers and are physically incompatible. C13 is rated 10A/250V (13A UL); C19 is rated 16A/250V (20A UL). A C19 cord will not fit a C14 inlet, and a C13 cord will not fit a C20 inlet — the connector geometry prevents cross-connection. Use C13 for standard 1U servers and rack equipment under 10A input; use C19 for high-draw servers, blade enclosures, and large UPS units with C20 inlets.

How do I tell C13 from C19 by sight?

C13 and C19 share a family resemblance but differ in physical size. C13 is smaller with a narrower trapezoidal face; C19 is wider and taller. On a labeled cord, the connector body is typically marked "C13" or "C19," and the ampere rating is printed on the cord jacket or plug body — 10A or 13A (UL) = C13; 16A or 20A (UL) = C19. If the labeling is unclear, attempt insertion: the keyed geometry prevents a C13 from fitting a C20 inlet and vice versa.

Does a C13 cord work with a standard US wall outlet?

Yes, when the cord set includes a NEMA 5-15P plug on the wall end (the most common configuration for North American C13 cords). The C13 coupler connects to the equipment's C14 inlet; the NEMA 5-15P plug inserts into a standard 15A US wall outlet or PDU output. For 20A circuits, specify a C13 cord with a NEMA 5-20P wall-end plug instead.

About This Article
Prepared by the Cable Leader Technical Team, with over 20 years supplying UL-listed and CSA-certified IEC power cord sets to North American B2B and data center customers. Connector specifications verified against IEC 60320-1 (Appliance Couplers for Household and Similar General Purposes) and UL 60320-1 (Safety of Appliance Couplers — North American). Branch circuit load guidance per NEC Article 210.19 (NFPA 70, National Electrical Code). Last reviewed: June 2026.
