CCA Cable vs Pure Copper: What the Markings Mean and Why It Matters for Your Network

That higher resistance affects three things network installers care about:

• Signal performance: higher resistance contributes to certification failures including insertion loss and resistance unbalance.
• PoE performance: more resistance means more voltage drop and more heat when current flows through the cable.
• Mechanical reliability: aluminum is less ductile than copper and can be more susceptible to breakage or termination degradation under bend, pull, and crimp stress.

CCA vs Pure Copper: Specification Comparison

Why CCA Fails Category Standards

Fluke Networks notes that CCA and other non-standard conductors are often marketed as category-rated cable even though they may not meet all the requirements of a standards-compliant category cabling installation. CCA products may also lack valid safety listing for NEC installation environments — including CM, CMR, and CMP rated spaces — which is relevant for any cable installed in walls, risers, or air-handling spaces. Verify the listing documentation before installing in regulated spaces.

A box can say "Cat6" while the installed cable does not perform to the requirements of a Cat6 permanent link or channel. Category performance is not a marketing label — it needs to be verified by electrical testing against the appropriate field-test limit.

CCA is particularly prone to underperforming in these areas:

• DC resistance and resistance unbalance. Variations in CCA conductor diameter and concentricity can cause unbalance that distorts Ethernet data signals, potentially leading to bit errors, retransmits, and non-functioning links.
• Insertion loss. Higher conductor resistance contributes to higher signal loss over distance.
• Safety listing. A CCA cable may carry marks that do not reflect the full compliance picture. Verify the listing and conductor construction before installing in regulated spaces.

If a spec sheet says "copper conductor" without the qualifier "pure," "bare," or "solid," ask for clarification before purchasing for a permanent installation.

CCA Cable and PoE: The Resistance Problem

Power over Ethernet sends DC power over the same four-pair cabling used for network data. IEEE 802.3af, 802.3at, and 802.3bt define increasing power levels — from standard PoE to PoE+ and high-power 4-pair PoE. The higher the power class, the more important conductor resistance becomes.

When current flows through cable resistance, two things happen. First, voltage drops along the cable, so the powered device receives less voltage than the switch or injector supplies. Second, the lost power becomes heat in the cable. Belden's summary of TIA TSB-184-A notes that PoE design should account for cable bundle temperature rise, cable category, gauge, and installation conditions.

Pure copper cable does not eliminate voltage drop — every conductor has resistance. The difference is margin. CCA starts with higher resistance, which reduces the available voltage and thermal margin before the device or installation reaches its limit. For PoE cameras, wireless access points, VoIP phones, and similar devices, that margin difference can be the gap between a reliable installation and an intermittent one.

For higher-power PoE environments, pure copper Cat6A patch cables can provide additional performance margin when the category, AWG, length, and installation conditions are properly matched.

When Is CCA Cable Acceptable?

CCA is generally not appropriate for permanent structured cabling, commercial in-wall installation, plenum or riser spaces, data centers, PoE devices, security cameras, wireless access points, or any network where reliability and compliance are required.

The lower-risk use case for CCA is limited to short, temporary, data-only patch applications in non-critical environments where PoE, code compliance, and long service life are not factors. Even in those situations, pure copper is the more reliable choice. The price difference between CCA and pure copper patch cable is typically small relative to the cost of troubleshooting a failed link or re-pulling non-compliant cabling.

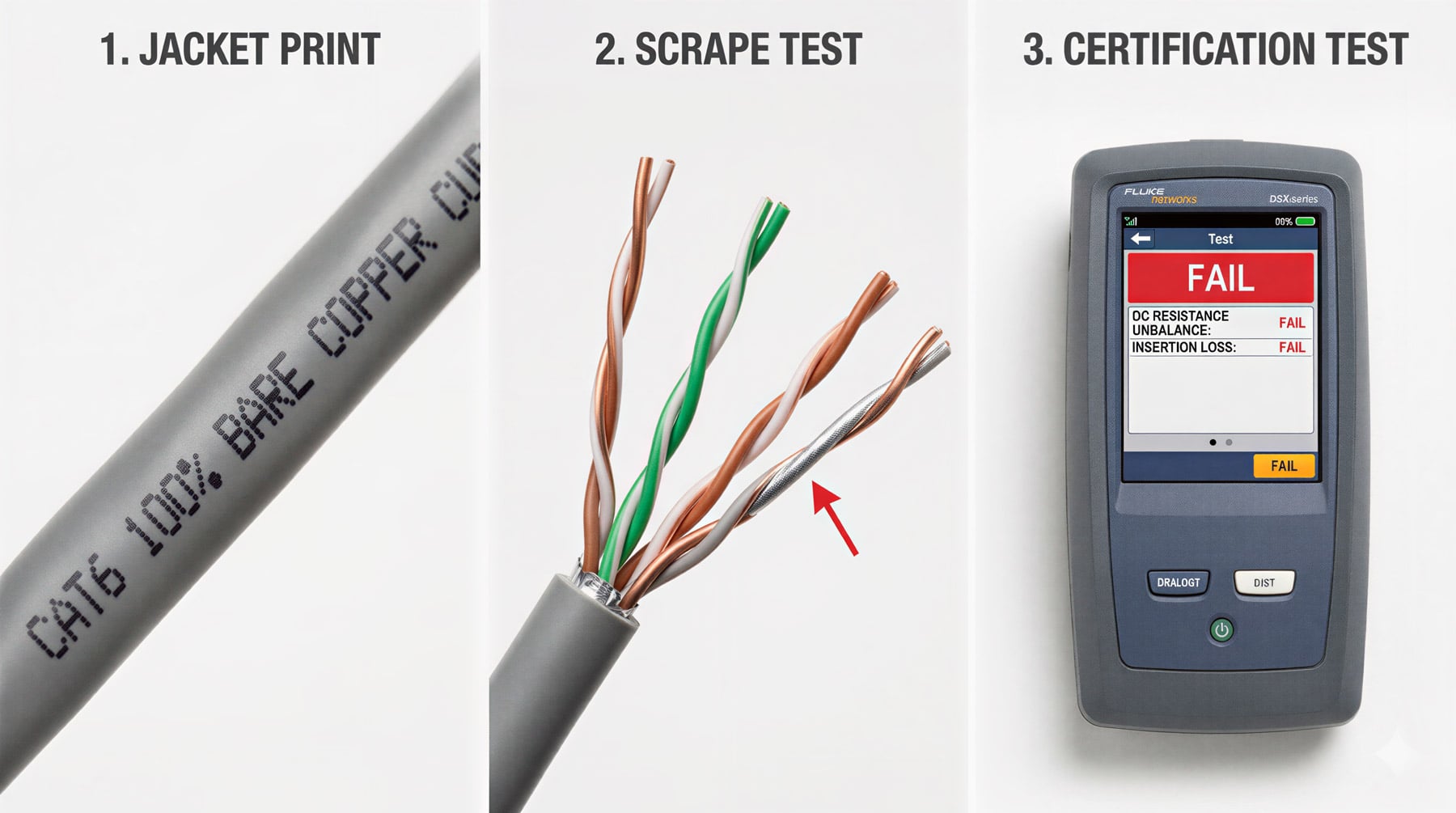

How to Identify CCA Cable

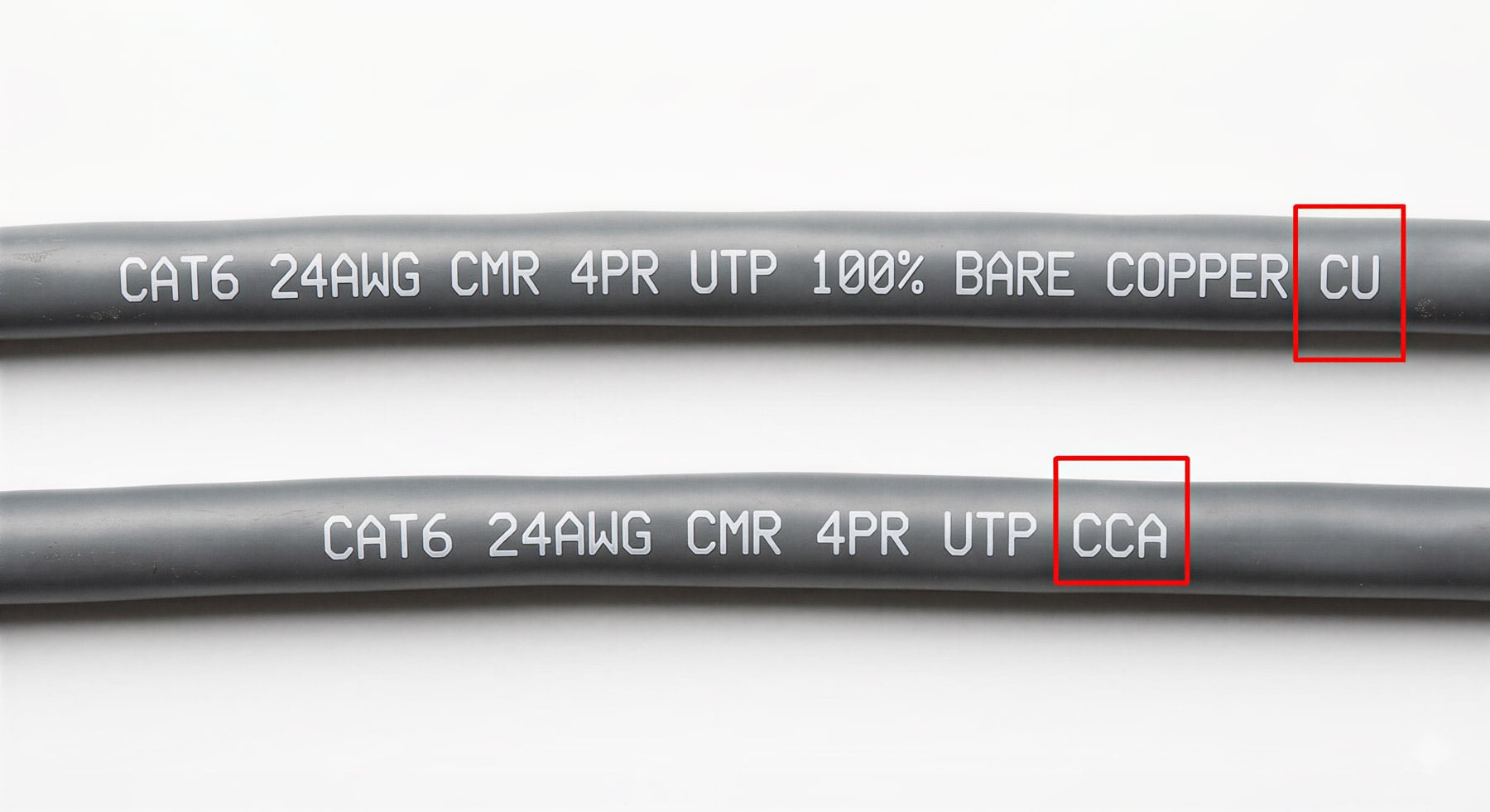

1. Read the Jacket Print

Look for wording such as CU, bare copper, solid copper, stranded copper, or 100% copper printed on the cable jacket. Missing or vague conductor language is a signal to ask for documentation before purchasing. Reputable manufacturers state conductor material clearly.

2. Check the Datasheet

The construction section of the datasheet should state conductor material, gauge, jacket rating, category rating, and applicable listing. If the datasheet says "copper conductor" without a clear qualifier such as pure, bare, or solid, request clarification before specifying the cable for a permanent installation.

3. Confirm the Safety Listing

For commercial, riser, plenum, or in-wall work, confirm the cable holds the required safety listing for the installation space. A jacket mark alone may not be sufficient — request the listing documentation from the supplier if needed.

4. Scrape Test on Sample Pieces Only

Scraping or cutting a sample conductor can reveal a silver-colored aluminum core beneath the copper layer. This approach is only suitable for evaluating a sample or scrap piece before purchase — never use it on finished installed cabling.

5. Certify Installed Links with a Professional Tester

A professional certification tester such as the Fluke Networks DSX CableAnalyzer can identify failures in DC resistance unbalance, insertion loss, and other category parameters. Certification testing is the most reliable method for verifying the performance of permanent installed cabling.

If you need RJ45 termination hardware for field termination, Cat6 keystone jacks are available with verified pure copper specification.

Bottom Line

CCA and pure copper cables are not equivalent. CCA may look like a copper cable and pass a basic continuity test, but it carries meaningful risk in standards compliance, PoE voltage margin, heat buildup, certification testing, and long-term reliability. For permanent Ethernet cabling, commercial networks, and PoE deployments, pure copper conductors are the appropriate specification — and the documentation should be verified before the cable is installed.

The incremental cost of pure copper over CCA is generally modest compared to the cost of re-pulling non-compliant cable, troubleshooting intermittent links, or replacing PoE devices that underperform due to voltage drop.

Frequently Asked Questions

Is CCA the same as copper Ethernet cable?

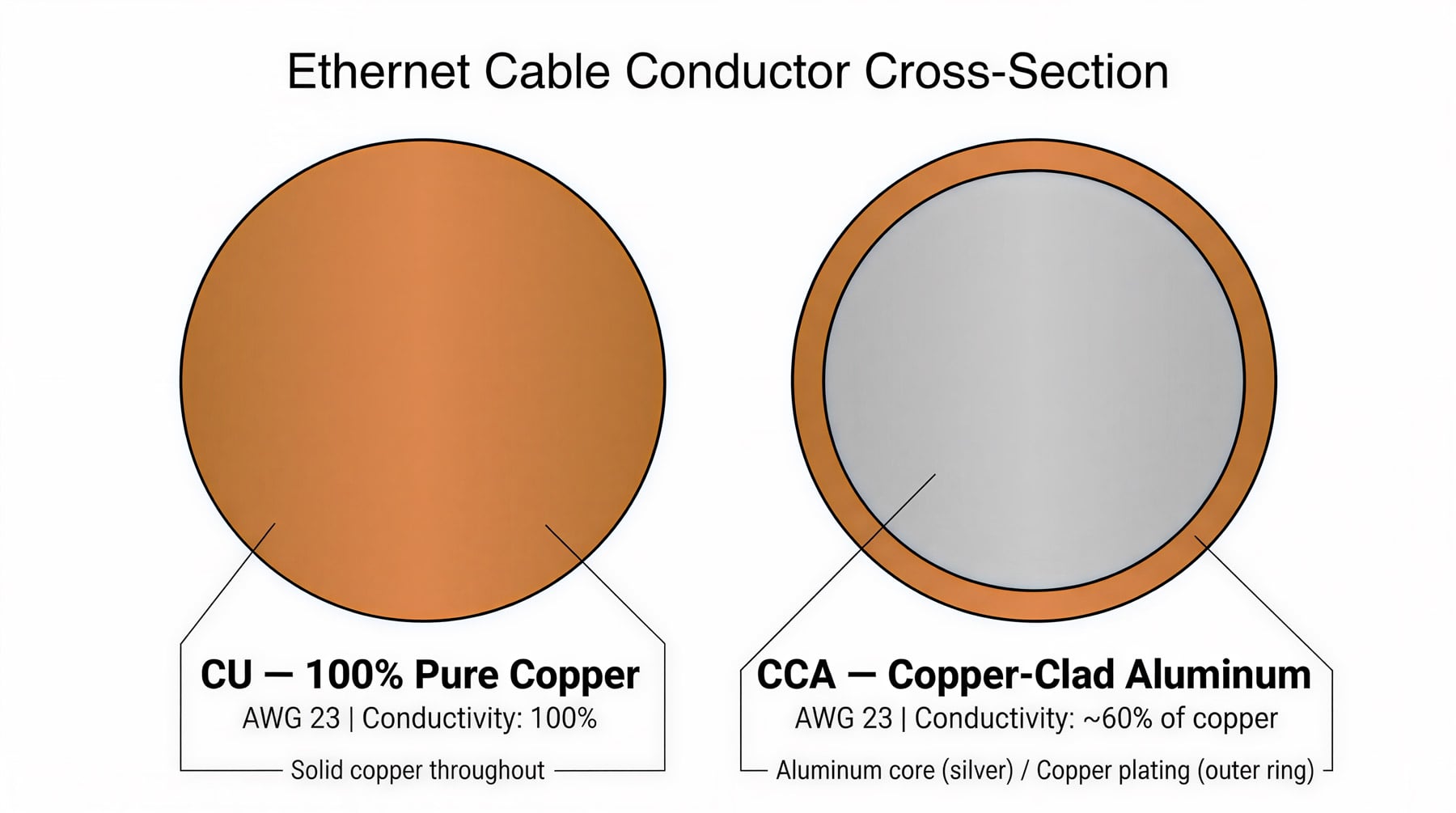

No. CCA stands for copper-clad aluminum. It has an aluminum core with a thin copper coating on the outside. Pure copper cable uses copper throughout every conductor, which gives it lower resistance, better PoE margin, and full suitability for standards-compliant permanent cabling.

What is the difference between copper clad aluminum and pure copper?

Pure copper cable uses copper throughout every conductor, giving it lower electrical resistance, better PoE margin, and compliance with ANSI/TIA category standards when properly manufactured. Copper-clad aluminum uses an aluminum core with a thin copper coating. Because aluminum has roughly 60% of copper's conductivity, CCA has significantly higher resistance — which can lead to more signal loss, more heat under PoE load, and failures on certification testing.

Can CCA cable be used for PoE?

CCA is not recommended for PoE applications. Its higher resistance compared to equivalent-gauge pure copper results in more voltage drop and more heat under PoE load. For PoE cameras, access points, phones, and other powered devices, pure copper cabling is the appropriate specification.

Does a Cat6 label guarantee pure copper conductors?

No. A category label alone does not confirm conductor material. Always check the jacket print, datasheet, and safety listing for wording such as bare copper, solid copper, stranded copper, CU, or 100% copper before purchasing or specifying the cable for a permanent installation.

How can I verify whether an Ethernet cable is CCA or pure copper?

Start with the jacket print and datasheet. For suspect cable, inspect a sample conductor, verify the safety listing documentation, or use a professional certification tester. A scrape test can reveal a silver-colored aluminum core beneath the copper coating, but it should only be performed on a sample or scrap piece — never on installed cabling.

Is copper-clad aluminum wire good for Ethernet use?

CCA wire is not an appropriate substitute for standards-compliant pure copper twisted-pair cabling in permanent Ethernet installations. Its higher resistance can lead to certification failures, PoE voltage drop, heat buildup, and long-term reliability issues. It may be used with lower risk in short, temporary, data-only, non-critical patch applications — but even in those cases, pure copper is the more reliable choice.

Is CCA ever acceptable?

Only in a narrow set of low-risk scenarios: short, temporary, data-only patches in non-critical environments where PoE, code compliance, and long service life are not required. For permanent structured cabling, commercial networks, or any PoE deployment, pure copper is the appropriate specification.
