DB25 Male to RJ-12 Modular Adapter
Using modular adapters with inexpensive silver satin or flat oval twisted pair wire has become a standard way to run a serial connection over a long distance. You can use this modular adapter to connect dump terminals, PC's and telecom equipment to serial devices. Slotted thumbscrews make installation fast and easy.

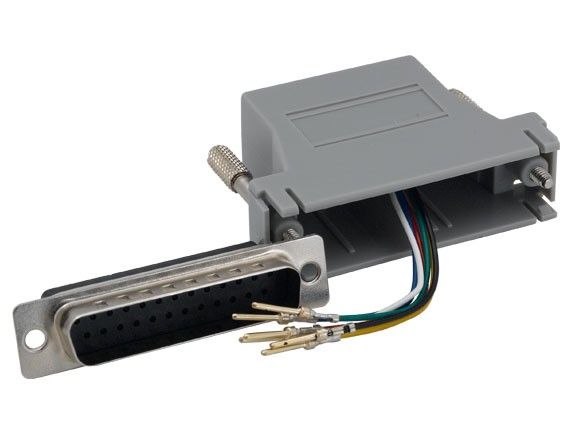

Note: Picture shows this adapter before assembly; this modular adapter will need to be assembled so that it is functional.
|Name||DB25 Male to RJ-12 Modular Adapter|
|Gender||Male to Female|
|Connector||DB25 Male to RJ-12|
• Easy to assemble! Simply insert the wires into the connectors
• RJ12 Pin Outs: 1-Blue, 2-Yellow, 3-Green, 4-Red, 5-Black, and 6-White.
