8ft NEMA L5-15P to L5-15R Heavy Duty Locking Power Extension Cord 14AWG 15A/125V SJT, Black

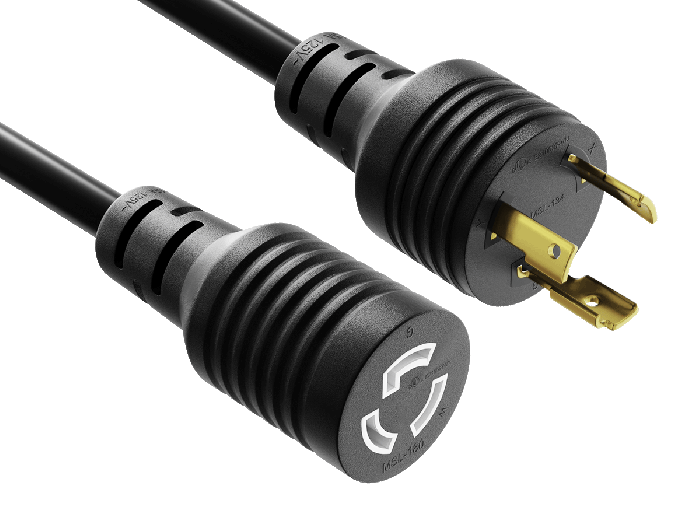

The CableLeader PW182-12XX (8 ft variant) is a heavy-duty NEMA L5-15P to NEMA L5-15R twist-lock extension cord engineered for applications where vibration, foot traffic, or movement could otherwise pull a standard plug loose. One end carries an L5-15P male plug (MSL-149, 2-pole grounded) and the opposite end carries an L5-15R female receptacle (MSL-180), creating a fully locking extension drop that bridges any L5-15 source to any L5-15-equipped load. Between the two connectors runs 14 AWG SJT three-conductor cable rated VW-1 flame retardant at 105°C and 300 volts, with a 9.3 mm outer diameter that retains flexibility for tight cable management.

The L5-15P male plug at one end follows the NEMA twist-lock pattern: insert the three-pin plug into a matching L5-15R outlet so the keyed body clears the receptacle slots, then rotate the plug clockwise approximately 30 degrees until it locks into position. Once engaged, neither vibration from generator engines nor incidental cable tugs can dislodge the connection — the only way to disconnect is a deliberate counter-rotation. The plug is rated 15 amps at 125 volts AC, matching the L5-15 specification, with molded PVC overmold construction at the cable entry to prevent strain on the conductor terminations.

The L5-15R female receptacle at the opposite end accepts any device equipped with an L5-15P plug, whether that downstream device is another extension cord, a stage lighting fixture, an industrial tool, a portable generator-powered appliance, or an L5-15-equipped UPS. The receptacle carries the same 15 A / 125 V rating and identical NEMA twist-lock geometry as Connector A. This symmetrical L5-15P-to-L5-15R configuration is what distinguishes the cord from L5-15-to-5-15 adapters: adapters trade the rotational lock for compatibility with a standard non-locking outlet, while this cord preserves the lock at both ends of the run.

The cord assembly carries UL Listing under file E210037-VN for both molded connectors and UL E204978 for the SJT cable, plus cUL recognition for Canadian electrical code compliance and RoHS hardware compliance for restricted substances. The 14 AWG SJT jacket is rated VW-1 (UL) / FT2 (CSA) flame retardant at 105°C and 300 volts AC, exceeding the demands of the L5-15 interface (15 A / 125 V) by a wide margin. The cable jacket is permanently marked "(UL) SJT 3/C 14AWG (2.08mm²) VW-1 105°C 300V E204978 C(UL)" so field engineers can audit the assembly against site code requirements at a glance, and the L5-15 plug face carries the standard "15A 125V" stamp confirming the electrical rating at the interface.

Typical deployments cluster around four scenarios. Stage and event production crews use the locking extension to chain lighting trees, audio rigs, and motorized truss elements where a kicked or yanked cable would interrupt the show, since the rotational lock holds even when foot traffic crosses the run. Portable inverter generators in the 2,000–3,000 watt class — including Honda EU2200i, EU3000iS, EU7000iS, Yamaha EF2200iS, and Champion 2500-watt inverter series — output L5-15R receptacles, and a locked extension is the only safe way to drop power 8 feet to a downstream device without risk of mid-run disconnection. Industrial workshops use the cord on bench-mounted heat guns, small CNC accessories, and process tools where vibration loosens a standard plug, while RV operators connect it to permanently installed 15 A receptacles on Class B vans and small motorhomes. Trade show and event riggers prefer the L5-15 system for exhibit lighting and demo rigs that may be relocated mid-show.

Compatibility & Ordering Information— PW182-12XX is compatible with every standards-compliant NEMA L5-15 receptacle and plug. That includes the L5-15R outlets on Honda EU2200i, EU3000iS, and EU7000iS portable generators; Yamaha EF2200iS, EF3000iSEB, and EF6300iSDE inverter generators; Champion 2500–3500 watt inverter series; and similar 15-amp class generator output panels. It also accepts L5-15P plugs on professional stage lighting fixtures whose cords ship with twist-lock terminations and L5-15-equipped UPS units in select industrial models. The 8-foot length covers in-rig drops on stage trusses, generator-to-equipment runs at portable power events, and bench-to-tool spans in workshop environments. The factory-standard length set per drawing 10W1-L515PR-XX is 6 ft, 10 ft, 15 ft, and 25 ft; the 8 ft variant (PW182-1208) is a CableLeader custom length addition. For deployments outside this length set, custom lengths, bulk packaging, and OEM kitting are available on request.

FAQ

Q1. What's the difference between NEMA L5-15 and NEMA 5-15?

NEMA L5-15 is the locking (twist-lock) version of NEMA 5-15. Both share the same 15-amp / 125-volt electrical rating, but L5-15 plugs and receptacles are keyed and rotate to mechanically lock together, while standard 5-15 plugs simply push in and pull out. L5-15 plugs cannot be inserted into a standard 5-15 outlet, and the reverse is also blocked — the pin geometry is not interchangeable.

Q2. Is this cord compatible with portable generators like the Honda EU2200i?

Yes. The Honda EU2200i, EU3000iS, EU7000iS, Yamaha EF2200iS, Champion 2500-watt inverter series, and most 2,000–7,000 watt inverter-class portable generators provide L5-15R receptacles as their 15-amp output. PW182-12XX plugs directly into that receptacle and provides an L5-15R receptacle at the other end for any device cord that terminates in an L5-15P plug.

Q3. Why does this cord use 14 AWG instead of 12 AWG?

14 AWG is the correct conductor size for a 15-amp circuit per UL standards and the National Electrical Code. The L5-15 interface is rated to a maximum of 15 amps, so 14 AWG SJT (rated 15 A continuous) provides full current capacity without the unnecessary cost or stiffness of heavier wire. 12 AWG would be required only for 20-amp circuits such as L5-20.

Q4. How do I lock the L5-15 plug?

Insert the L5-15P male plug into a matching L5-15R receptacle so the three pins align with the three slots, then rotate the plug clockwise approximately 30 degrees until you feel the body click into a locked position. To remove, rotate counterclockwise back to the alignment position before pulling. Never pull straight without first unlocking — the plug is keyed and will resist.

Q5. Which length should I choose — 8ft, 10ft, or 15ft?

Match the length to your deployment distance. The 8-foot version (PW182-1208) suits short generator-to-equipment runs, in-truss stage drops, and workshop bench connections that need slack for cable management. The 10 ft and 15 ft factory-standard lengths handle longer trade show booth power runs and stage rig spans. For longer deployments, the 25 ft factory length or custom lengths above are available on request.
