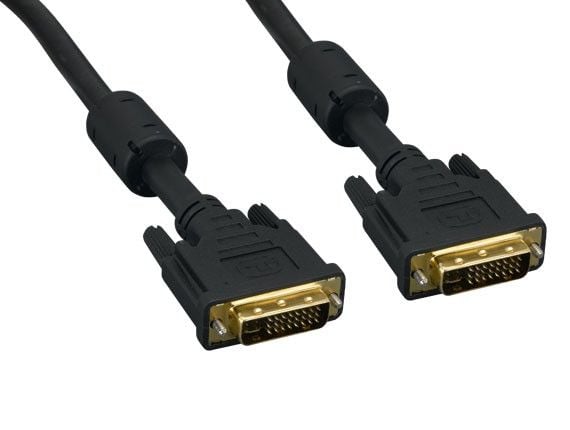

5m DVI-I M/M Dual Link Digital / Analog Video Cable
DVI-I interface was designed to carry both digital and analog signals. It combines shielded twisted pair digital data lines and analog RGB coaxial cable lines into a molded cable jacket. The DVI-I dual link allows high-speed digital transmission up to 9.9 Gbps.
Our DVI-I cable is fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). Gold-plated connectors ensure superior signal transfer and double shielding (foil and braid) provides maximum EMI/RFI protection.
Note: The long flat pin on a DVI-I connector is wider than the same pin on a DVI-D connector, so it is not possible to connect a male DVI-I to a female DVI-D by removing the 4 analog pins. It is possible, however, to connect a male DVI-D cable to a female DVI-I connector. Many flat panel LCD monitors have only the DVI-D connection so that a DVI-D male to DVI-D male cable will suffice when connecting the monitor to a computer's DVI-I female connector.
|Name||5m DVI-I Dual Link Digital / Analog Video Male to Male Cable|
|Gender||Male to Male|
|Connector||DVI-I Dual Link 24+5 pin Male to Male|
Connectors: DVI-I Dual Link (24+5 pin) Male to Male
Conductor: 3 Mini Coaxial 30 AWG + 28 AWG * 7 Pairs + 28 AWG * 7 Conductors
Signal Type: Digital + Analog
Shielding: Double Shielding- Aluminum Mylar Foil and Braid
DVI-I dual link allows high-speed digital transmission up to 9.9 Gbps
Gold-plated blade contacts ensure excellent conductivity
Gold-plated connectors ensure superior signal transfer
Double shielding (foil and braid) provides maximum EMI/RFI protection
Ferrite cores provide added EMI/RFI suppression
Meets DVI DDWG Standard
