1m OS2 LC to LC UPC Duplex Corning Fiber Optic Cable SingleMode 9/125 OFNR Rated, Yellow

1m OS2 LC/LC Duplex Corning Fiber Optic Cable Singlemode 9/125 OFNR Rated, Yellow

The OS2 Duplex Single Mode LC/LC 9/125 Fiber Optic Cable is a high-performance networking solution designed for long-range, high-speed data transmission. This cable excels in applications ranging from data centers and enterprise networks to telecommunications infrastructure and metropolitan area networks, offering superior performance and reliability over extended distances.

At the core of this cable's design is the high-quality single-mode fiber with a 9/125 μm core/cladding diameter. This configuration is optimized for long-range data transmission, making it ideal for applications that require signals to travel over significant distances without degradation. The duplex design, featuring two strands, allows for bidirectional communication, essential in many modern networking setups.

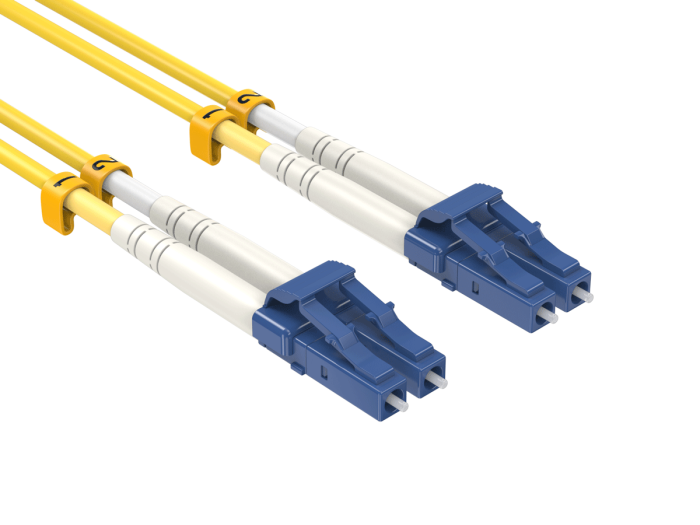

The cable is terminated with LC connectors on both ends. These compact connectors are perfect for high-density network applications, allowing for more connections in limited spaces. This makes the cable ideal for crowded server racks and data centers where maximizing port density is crucial.

Performance is a key attribute of this cable. With an insertion loss of ≤ 0.3 dB and a return loss of ≥ 55 dB, it maintains superior signal integrity over long distances, ensuring reliable data transmission across the network. The UPC (Ultra Physical Contact) polish further minimizes back reflection and signal loss, contributing to the cable's excellent performance.

Safety and compliance are addressed through the cable's OFNR (Riser) rated jacket, which allows for installation in vertical shafts between floors in buildings. This rating ensures enhanced fire safety, crucial for protecting your valuable infrastructure and meeting building codes.

Quality is assured with the use of Corning® glass, featuring a 9μm core and 125μm cladding. This premium construction guarantees superior optical performance and reliability, ensuring your network operates at peak efficiency. Each cable comes with a test report, providing you with verified performance data for your peace of mind.

The cable's physical attributes are tailored for professional use. With a jacket outer diameter of 2.0mm, it strikes a balance between durability and flexibility, facilitating easy routing and management in high-density environments. The industry-standard yellow coloration of the jacket enables quick identification in complex cabling installations.

This OS2 Duplex Single Mode LC/LC 9/125 Fiber Optic Cable is suitable for various applications, including data centers, enterprise networks, telecommunications infrastructure, long-distance networks, campus networks, high-speed internet backbones, and metropolitan area networks. It's particularly well-suited for Fast Ethernet, Gigabit Ethernet, and other high-bandwidth, long-range data applications.

By selecting this cable, network managers can effectively address current high-bandwidth, long-distance requirements while preparing for future technological advancements. Its combination of long-range capability, high-density design, superior performance, and adherence to industry standards makes it a practical and forward-looking choice for modern networking needs across a wide range of industries and applications.
